Coil On Plug Connectors
Coil On Plug Connectors
Fig 1: Coil On Plug 1 Connector End View (C111)
Courtesy of FORD MOTOR CO.
Fig 2: Coil On Plug 2 Connector End View (C112)
Courtesy of FORD MOTOR CO.
Fig 3: Coil On Plug 3 Connector End View (C113)
Courtesy of FORD MOTOR CO.
Fig 4: Coil On Plug 4 Connector End View (C114)
Courtesy of FORD MOTOR CO.

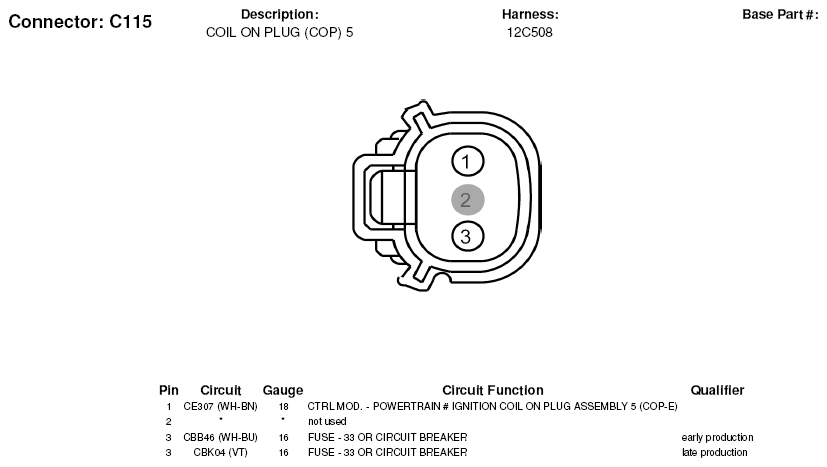

Fig 5: Coil On Plug 5 Connector End View (C115)
Courtesy of FORD MOTOR CO.

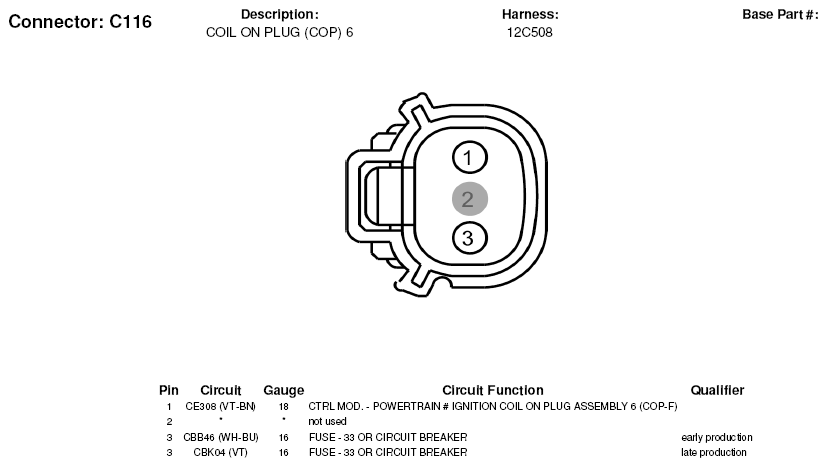

Fig 6: Coil On Plug 6 Connector End View (C116)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
