Cylinder Head Temperature Sensor Connector

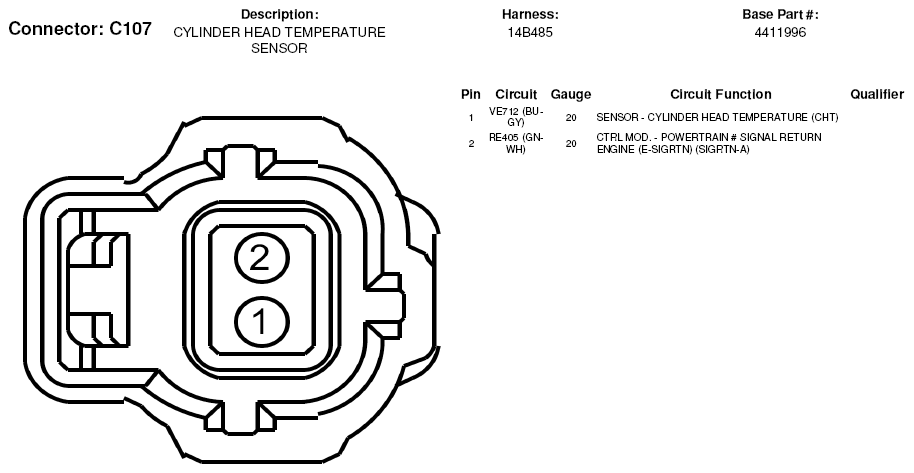

Fig 1: Cylinder Head Temperature Sensor Connector End View (C107)
G05182512Courtesy of FORD MOTOR CO.
