Headlamp Connectors

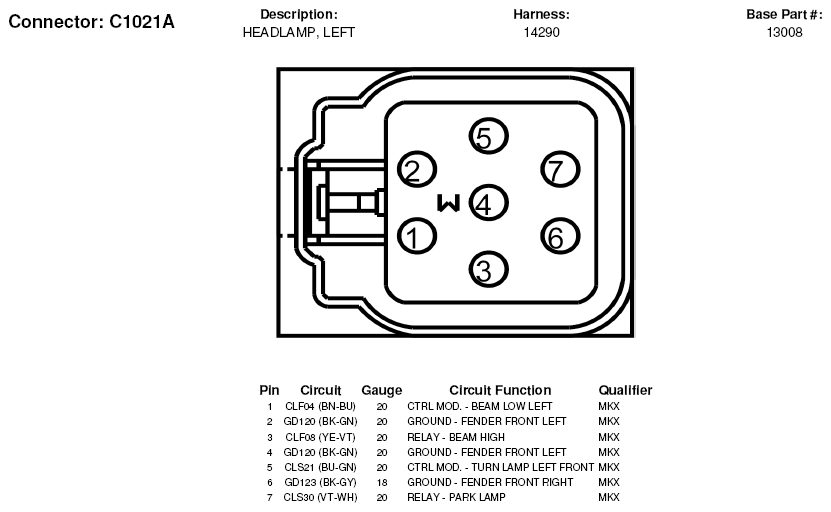

Fig 1: Headlamp Connector End View (C1021A)
G05182697Courtesy of FORD MOTOR CO.

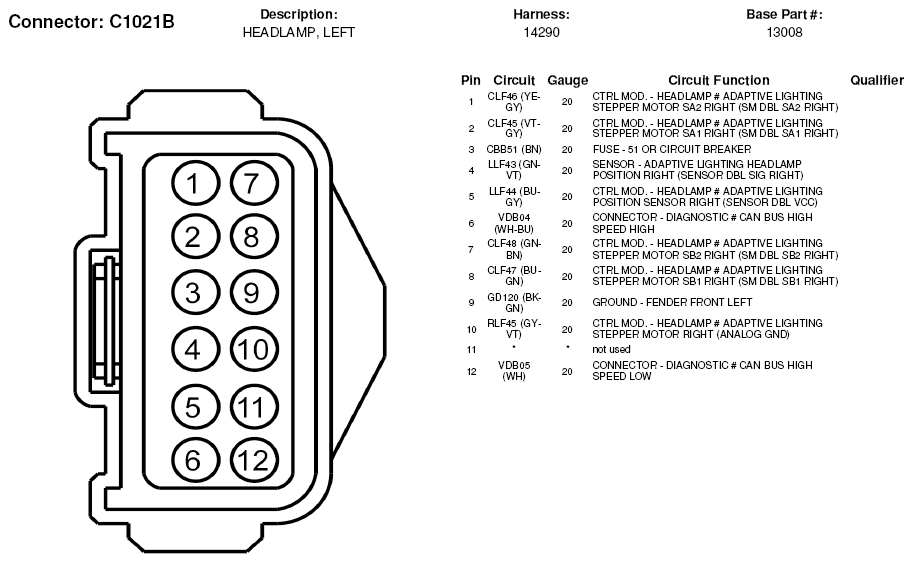

Fig 2: Headlamp Connector End View (C1021B)
G05182698Courtesy of FORD MOTOR CO.

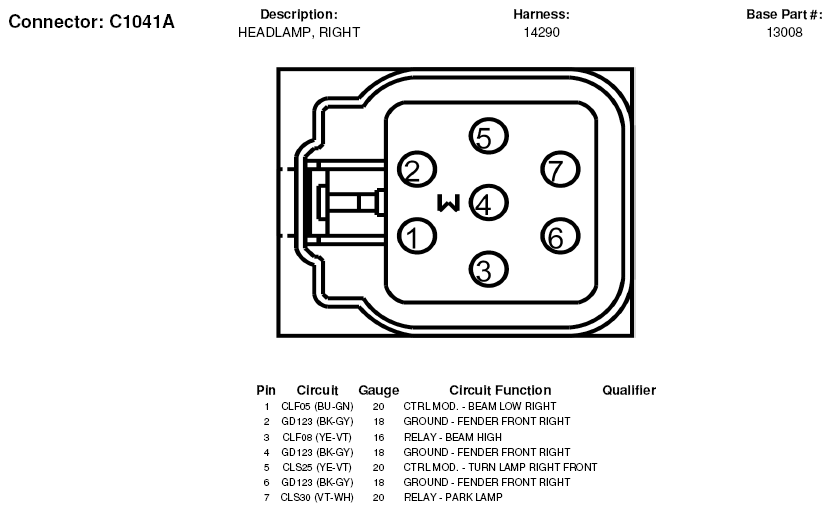

Fig 3: Headlamp Connector End View (C1041A)
G05182703Courtesy of FORD MOTOR CO.

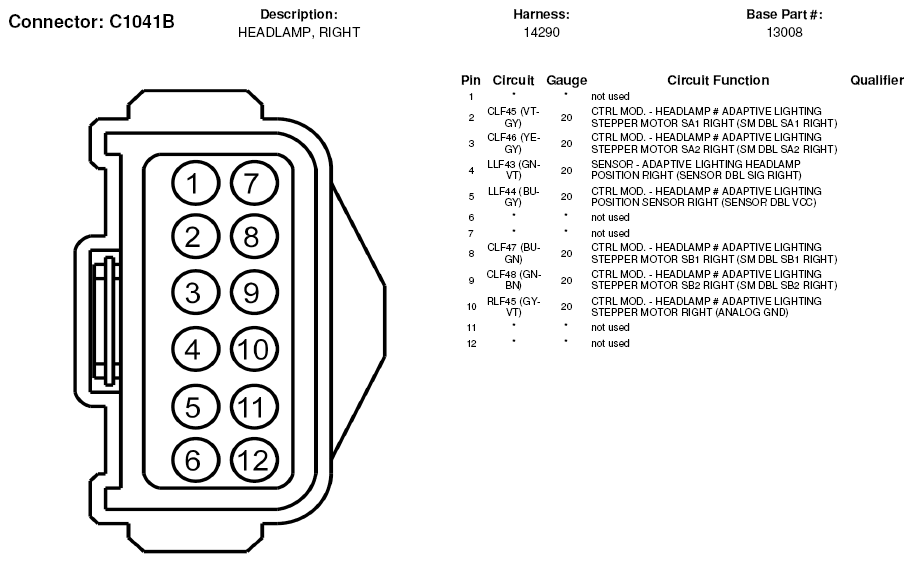

Fig 4: Headlamp Connector End View (C1041B)
G05182704Courtesy of FORD MOTOR CO.
