Illuminated Liftgate Applique Connector
Illuminated Liftgate Applique Connector

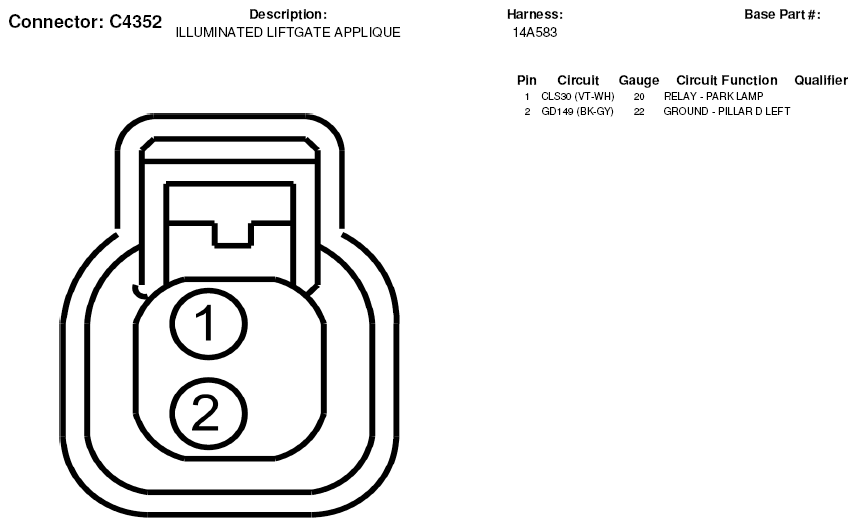

Fig 1: Illuminated Liftgate Applique Connector End View (C4352)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
