Power Liftgate Chime Connector
Power Liftgate Chime Connector

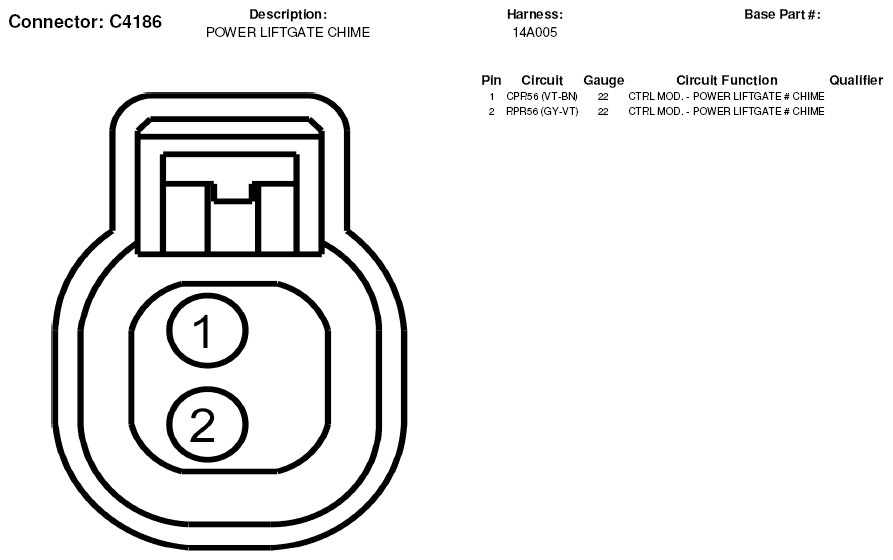

Fig 1: Power Liftgate Chime Connector End View (C4186)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
