Power Point Cargo Area Connector

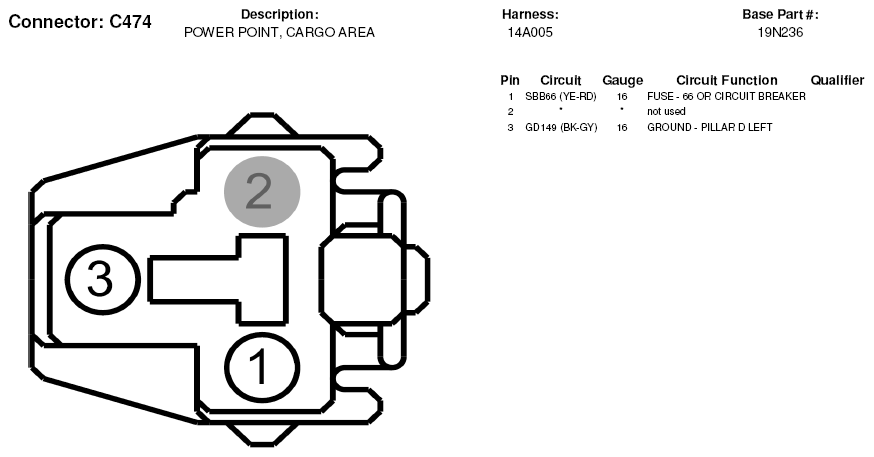

Fig 1: Power Point Cargo Area Connector End View (C474)
G05182634Courtesy of FORD MOTOR CO.
