Satellite Digital Audio Receiver Connector
Satellite Digital Audio Receiver Connector

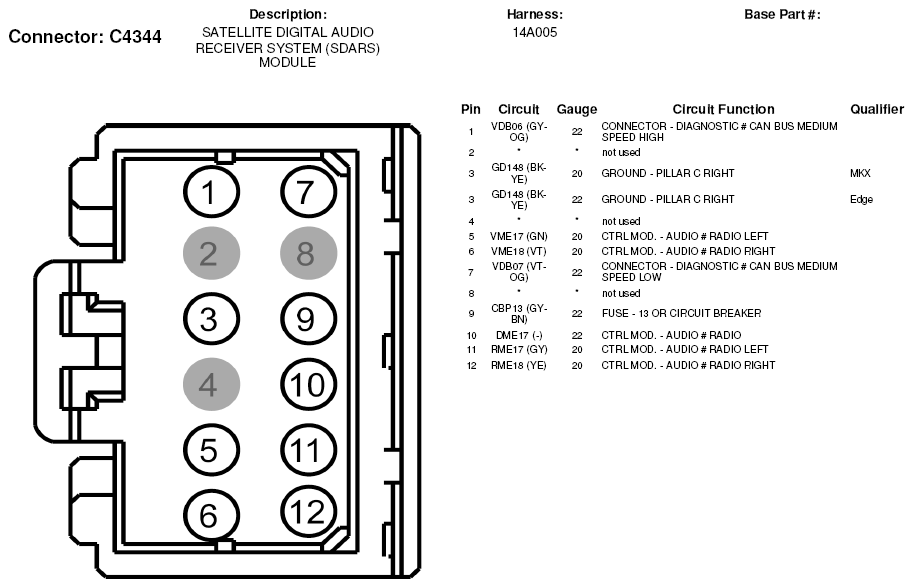

Fig 1: Satellite Digital Audio Receiver Connector End View (C4344)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
