Seat Heater Element Connector

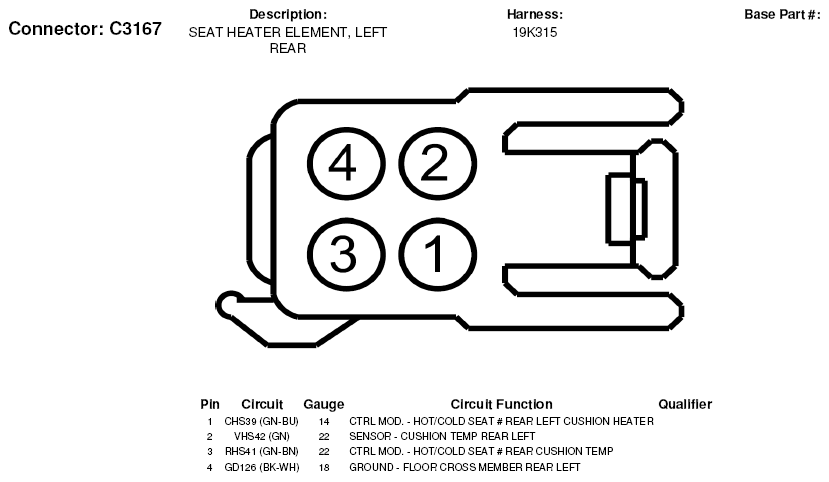

Fig 1: Seat Heater Element Connector End View (C3167)
G05182768Courtesy of FORD MOTOR CO.

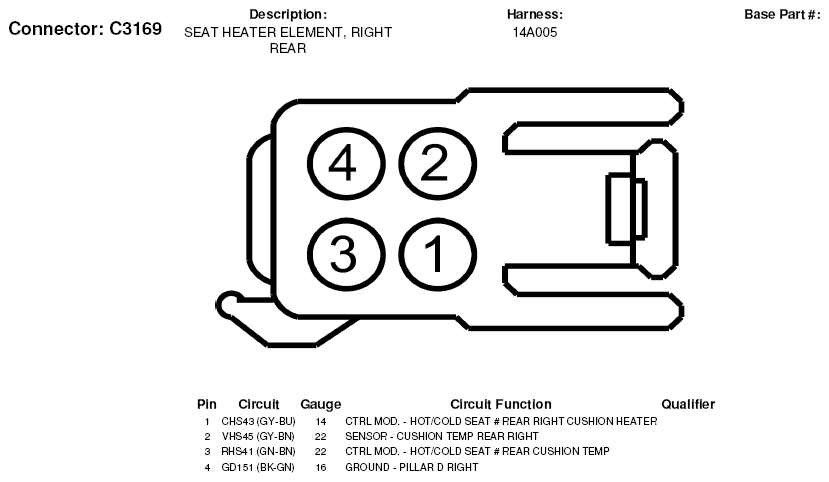

Fig 2: Seat Heater Element Connector End View (C3169)
G05182769Courtesy of FORD MOTOR CO.
