Subwoofer Connector

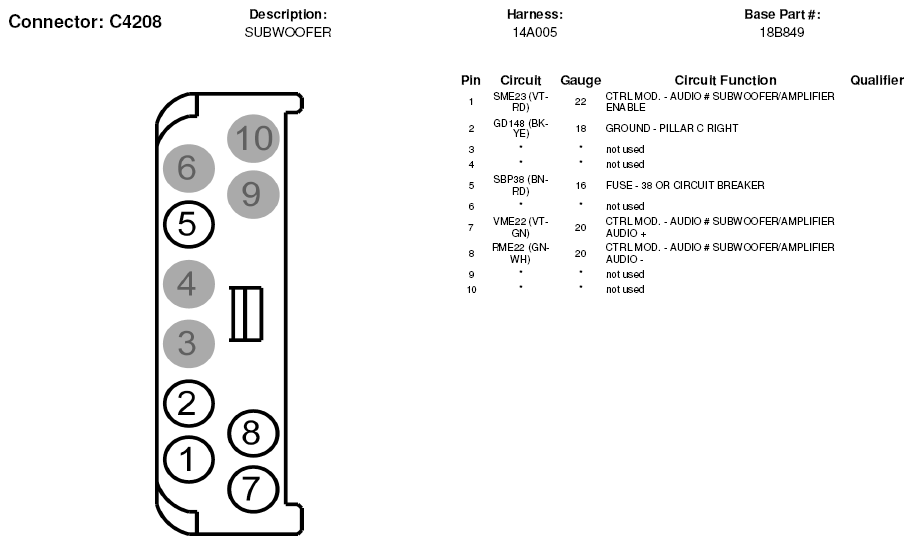

Fig 1: Subwoofer Connector End View (C4208)
G05182816Courtesy of FORD MOTOR CO.

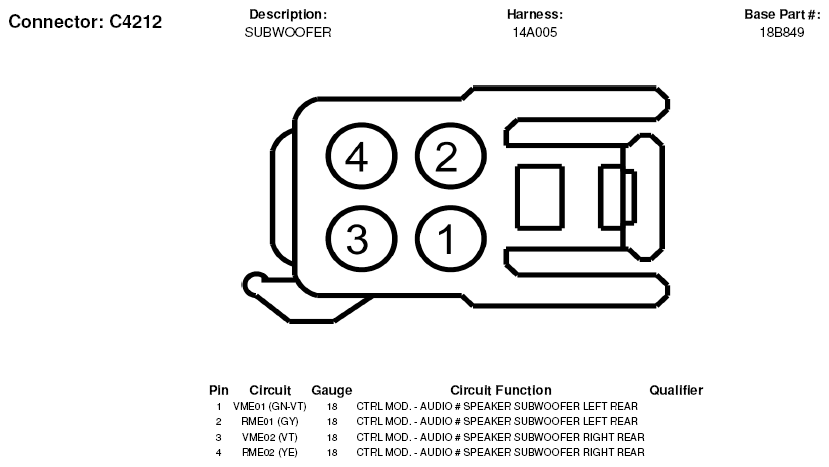

Fig 2: Subwoofer Connector End View (C4212)
G05182817Courtesy of FORD MOTOR CO.
