Power Steering Fluid Cooler: Notes

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

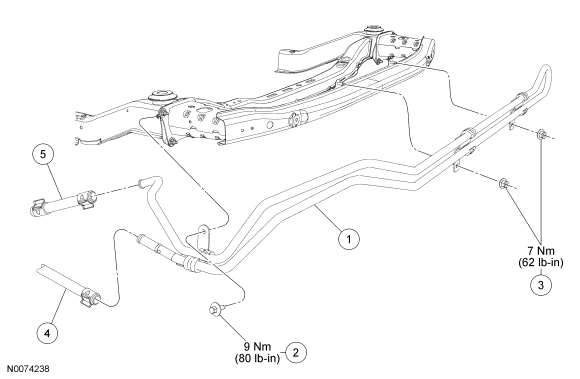

Fig 1: Exploded View Of Power Steering Fluid Cooler With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3D746	Power steering fluid cooler
2	W711788	Power steering fluid cooler-to-subframe bolt
3	W707142	Power steering fluid cooler nuts (2 required)
4	3A713B	Return hose
5	3A713C	Return hose
