Transmission Fluid Cooler: Installation

  1. Position the transmission fluid cooler in place.
  2. Install the 2 transmission fluid cooler support brackets and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
    3. Fig 1: Locating Transmission Fluid Cooler Support Brackets & Bolts
    GF0031975Courtesy of FORD MOTOR CO.
  3. Connect the transmission fluid cooler tubes to the transmission fluid cooler.
    4. Fig 2: Locating Transmission Fluid Cooler Tubes On Transmission Fluid Cooler
    GF0031976Courtesy of FORD MOTOR CO.
  4. Install the secondary latches on the transmission fluid cooler.

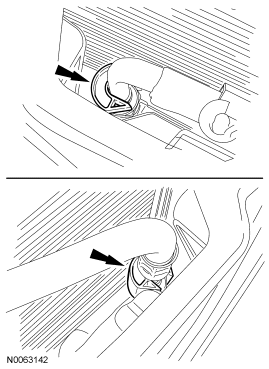

    5. Fig 3: Locating Secondary Latches On Transmission Fluid Cooler
    GF0031973Courtesy of FORD MOTOR CO.
  5. Connect the transmission fluid cooler tube fasteners to the radiator support.
    6. Fig 4: Locating Transmission Fluid Cooler Tube Fasteners On Radiator Support
    GF0031972Courtesy of FORD MOTOR CO.
  6. Install the front bumper cover. For additional information, refer to BUMPERS .
  7. Check the transmission fluid level and add automatic transmission fluid as necessary.
