Restraints Control Module Connectors

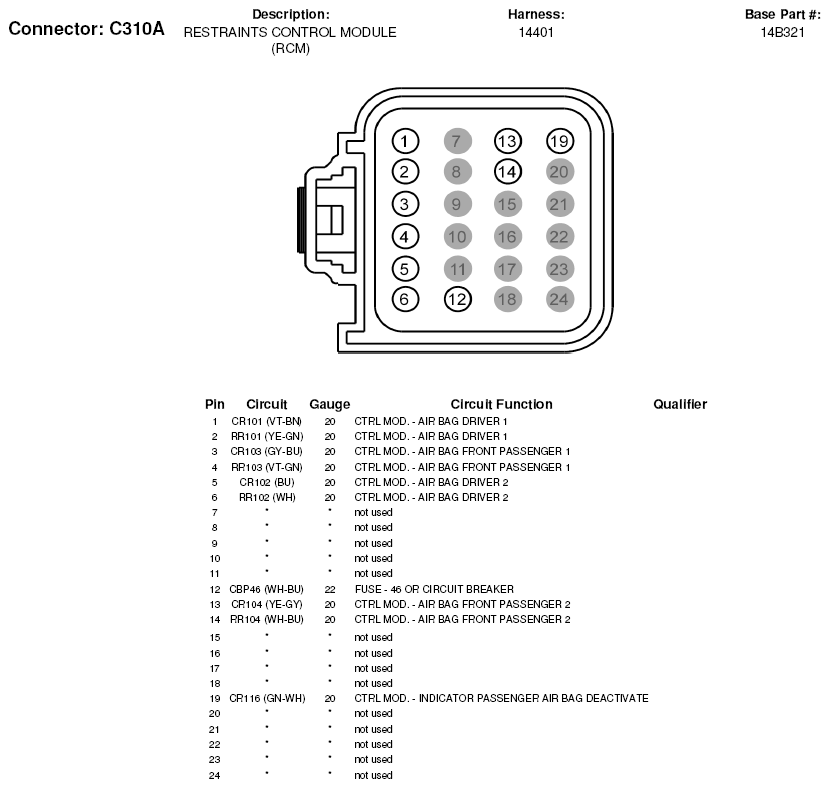

Fig 1: Restraints Control Module Connector End View (C310A)

Courtesy of FORD MOTOR CO.

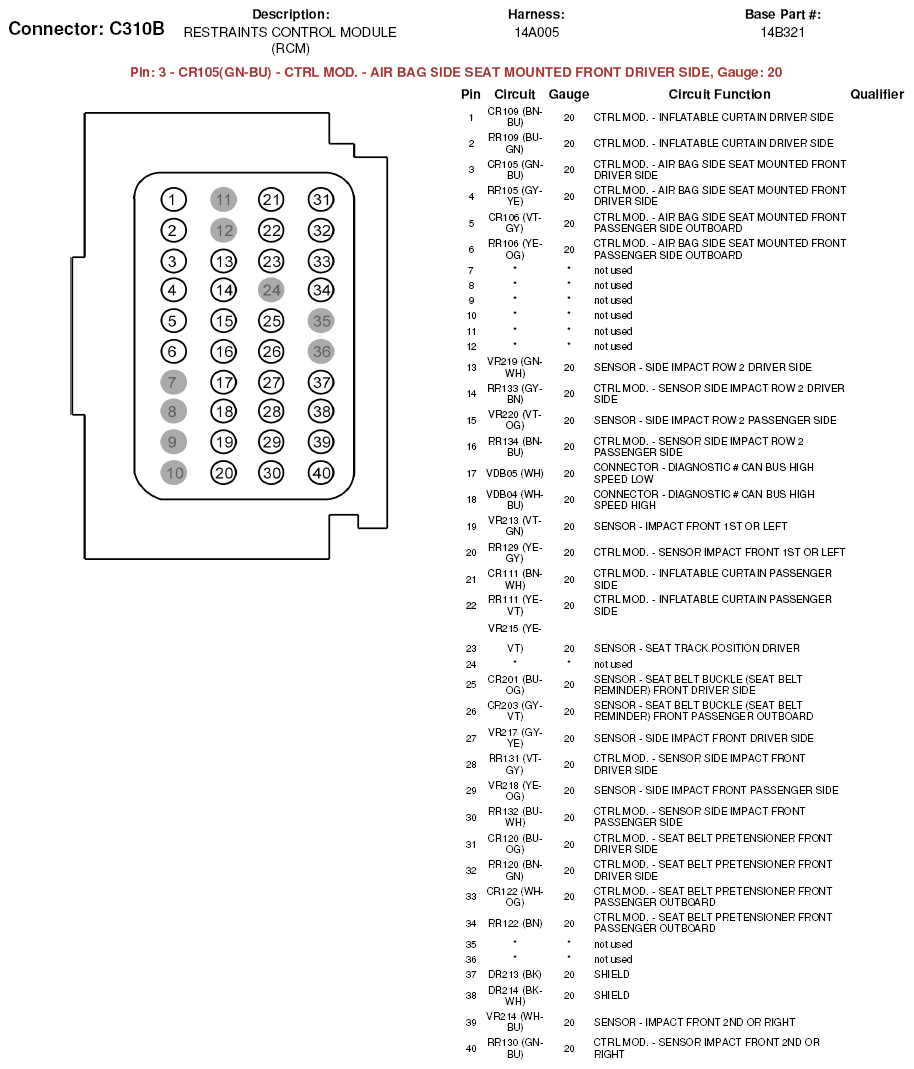

Fig 2: Restraints Control Module Connector End View (C310B)

Courtesy of FORD MOTOR CO.
