Driver Seat Backrest Motor Connector

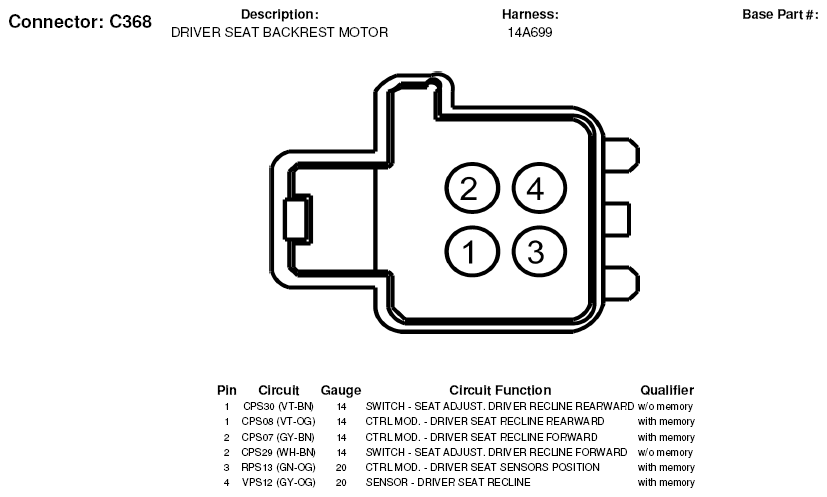

Fig 1: Driver Seat Backrest Motor Connector End View (C368)
G05182615Courtesy of FORD MOTOR CO.
