Power Point Console Connector
Power Point Console Connector

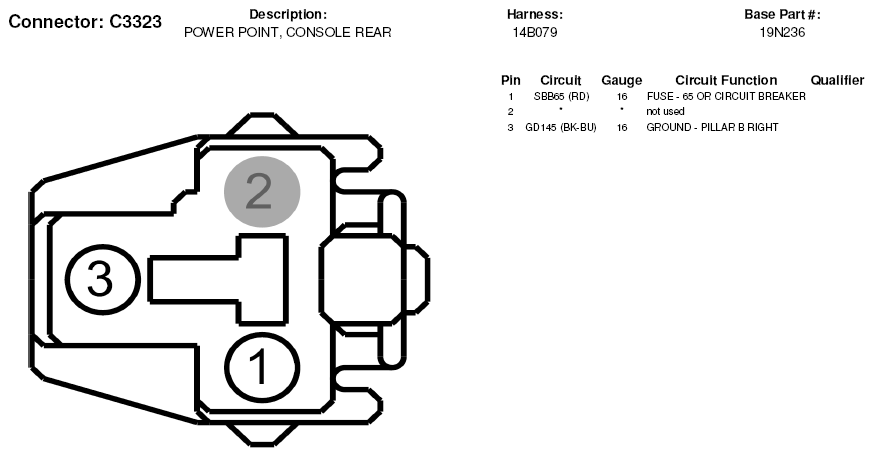

Fig 1: Power Point Console Connector End View (C3323)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
