Seat Track Position Sensor Connector

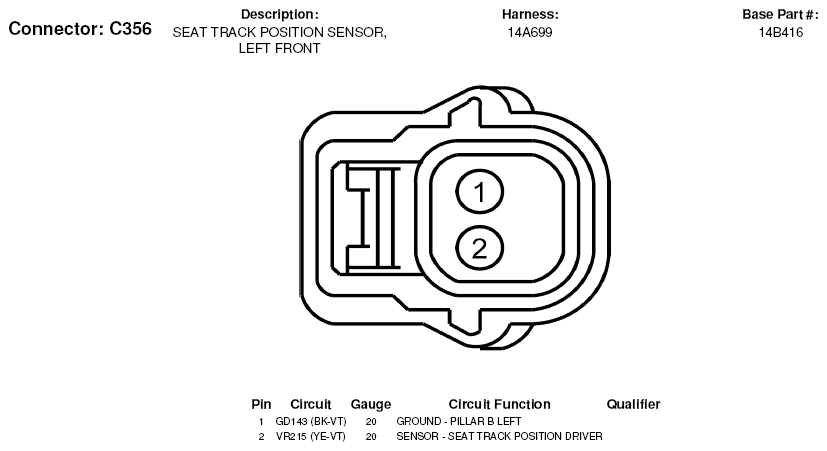

Fig 1: Seat Track Position Sensor Connector End View (C356)
G05182612Courtesy of FORD MOTOR CO.
