Tweeter Connector

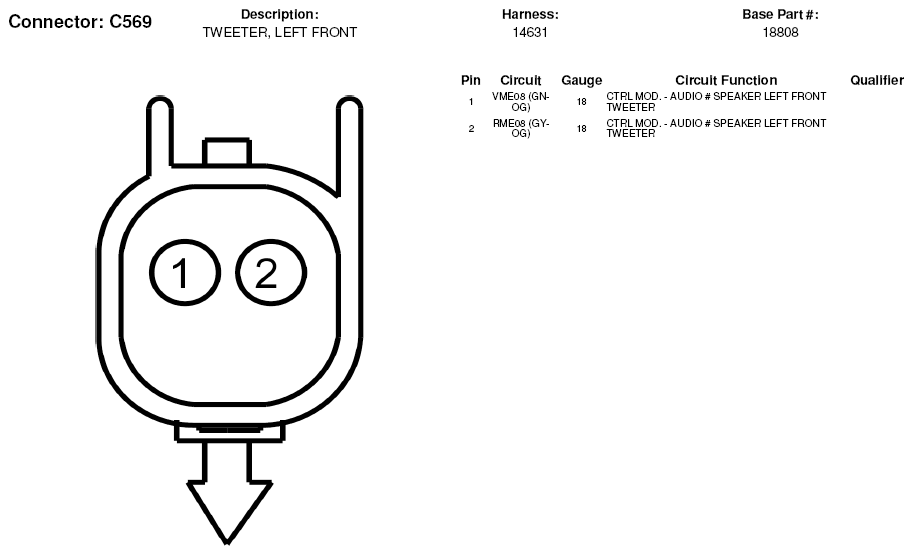

Fig 1: Tweeter Connector End View (C569)
G05182652Courtesy of FORD MOTOR CO.

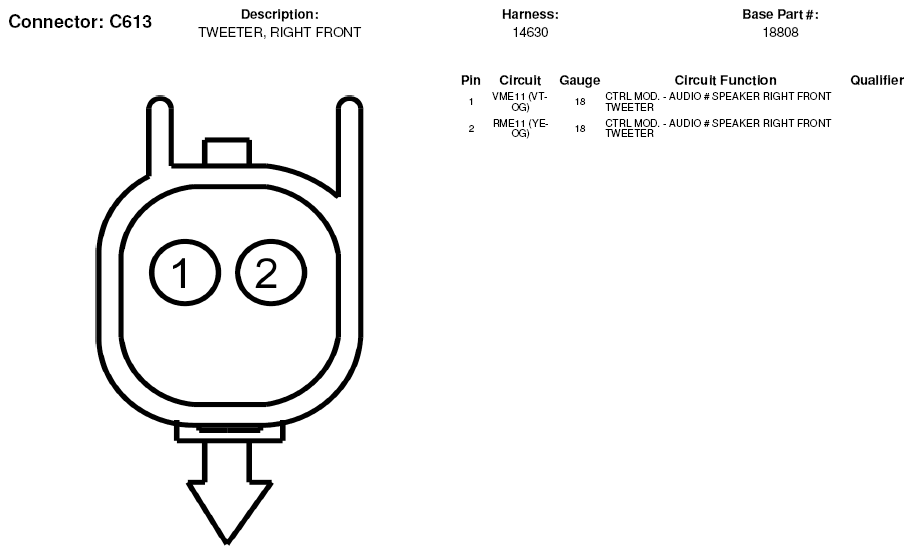

Fig 2: Tweeter Connector End View (C613)
G05182661Courtesy of FORD MOTOR CO.

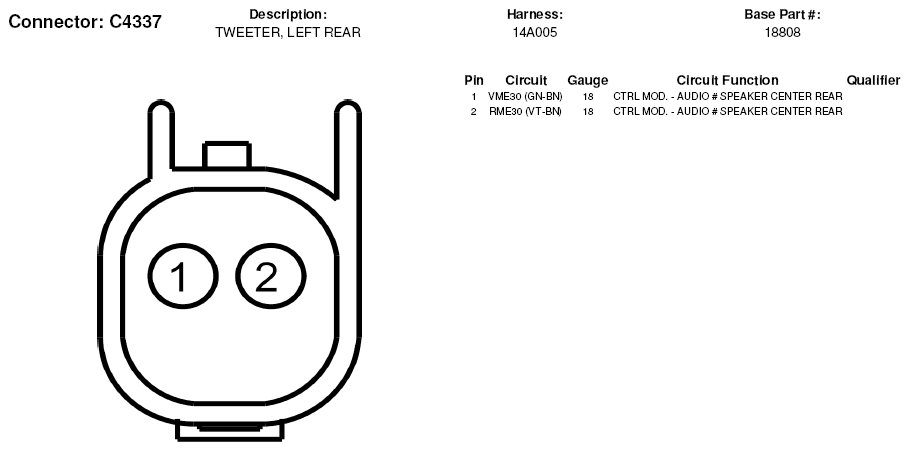

Fig 3: Tweeter Connector End View (C4337)
G05182822Courtesy of FORD MOTOR CO.

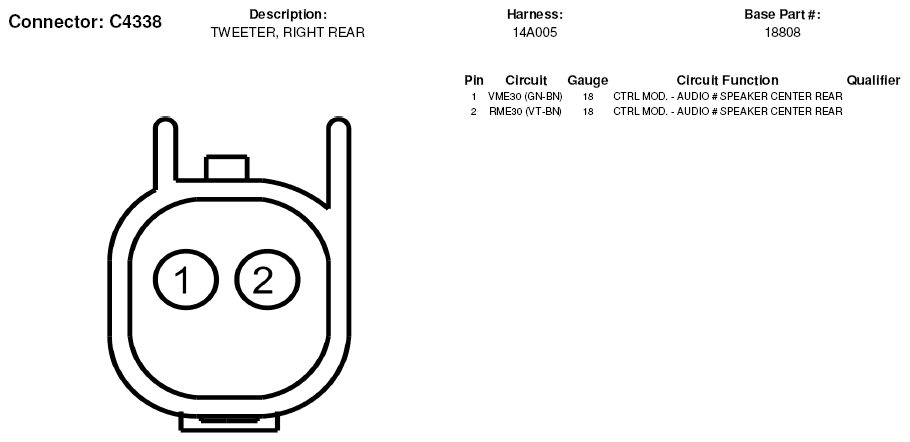

Fig 4: Tweeter Connector End View (C4338)
G05182823Courtesy of FORD MOTOR CO.
