All Wheel Drive Module Connector
All Wheel Drive Module Connector

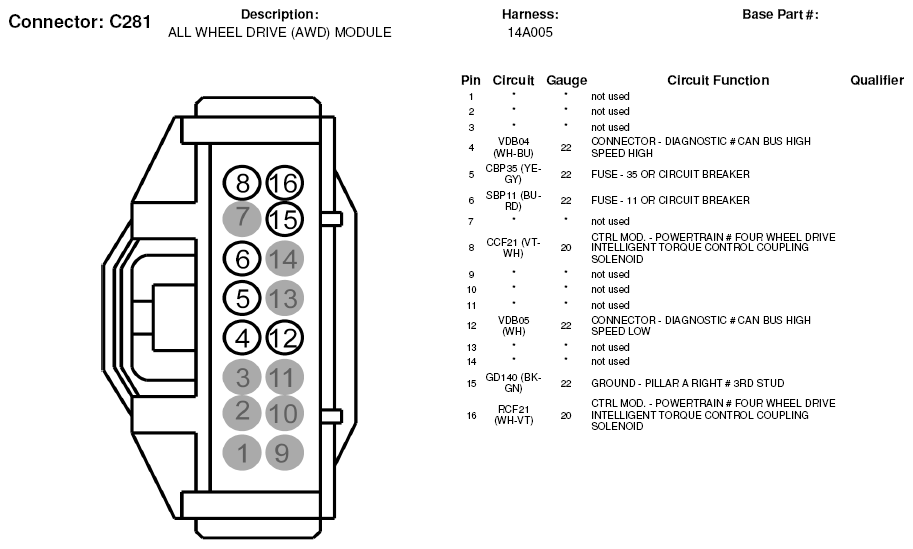

Fig 1: All Wheel Drive Module Connector End View (C281)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
