Audio Digital Signal Processing Connector

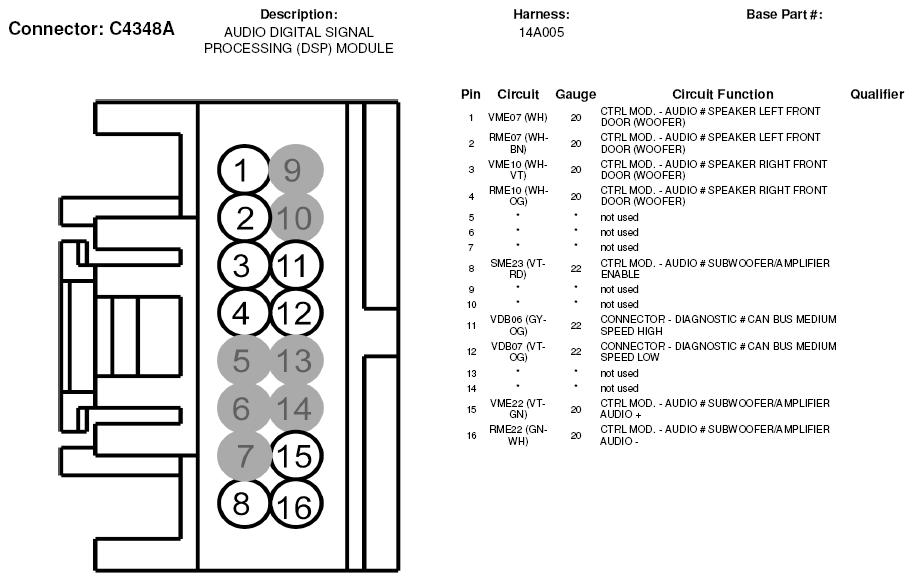

Fig 1: Audio Digital Signal Processing Connector End View (C4348A)
G05182828Courtesy of FORD MOTOR CO.

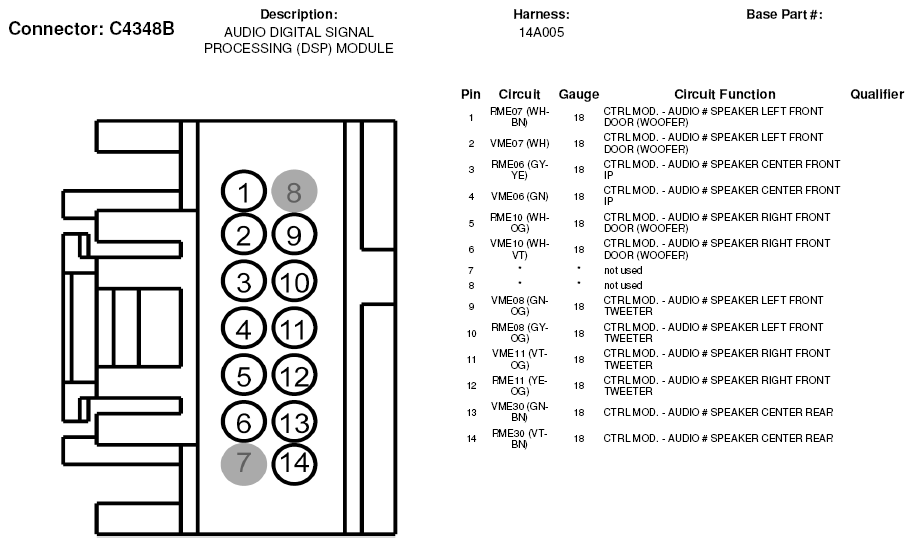

Fig 2: Audio Digital Signal Processing Connector End View (C4348B)
G05182829Courtesy of FORD MOTOR CO.

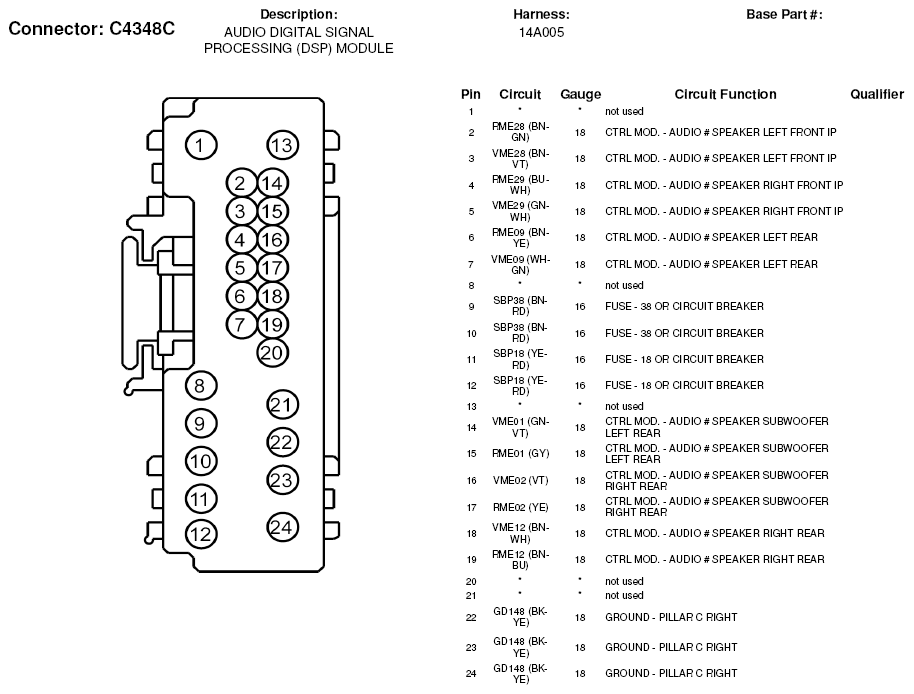

Fig 3: Audio Digital Signal Processing Connector End View (C4348C)
G05182830Courtesy of FORD MOTOR CO.
