Cooling Fan Module Connector
Cooling Fan Module Connector

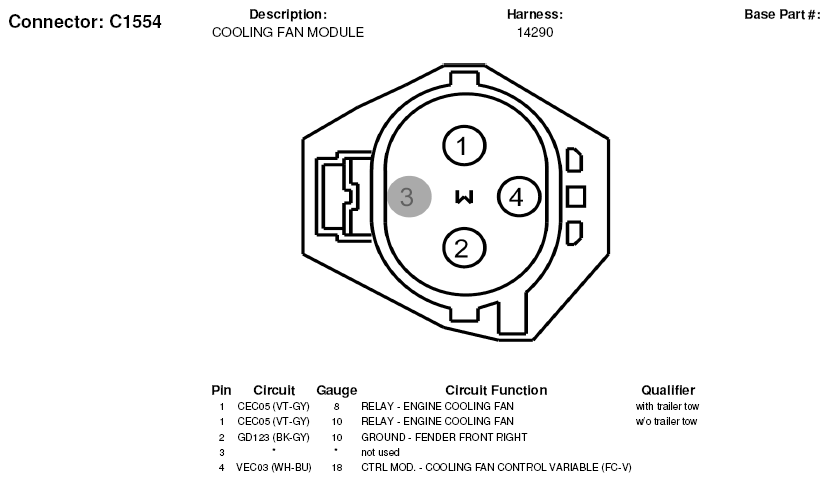

Fig 1: Cooling Fan Module Connector End View (C1554)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
