Driver Seat Module Connector

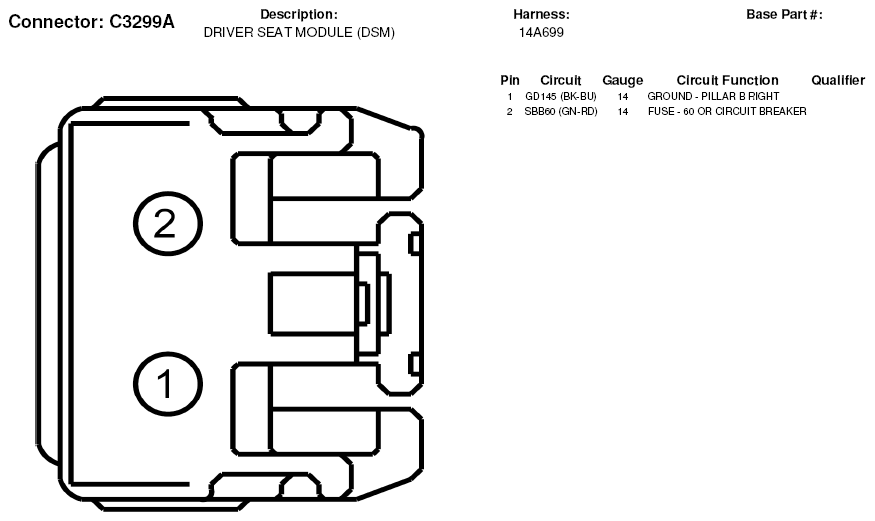

Fig 1: Driver Seat Module Connector End View (C3299A)

Courtesy of FORD MOTOR CO.

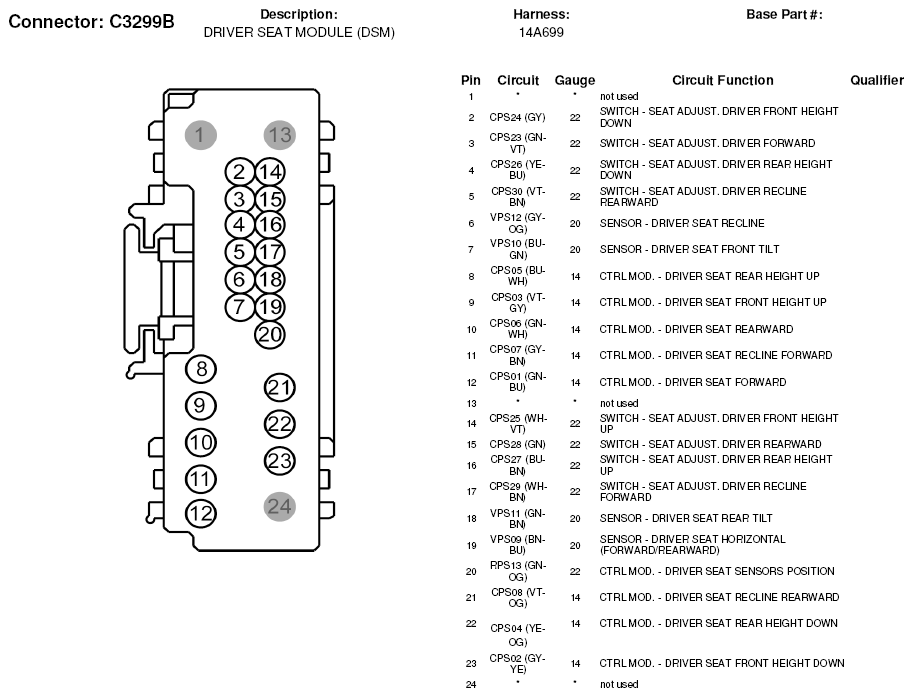

Fig 2: Driver Seat Module Connector End View (C3299B)

Courtesy of FORD MOTOR CO.

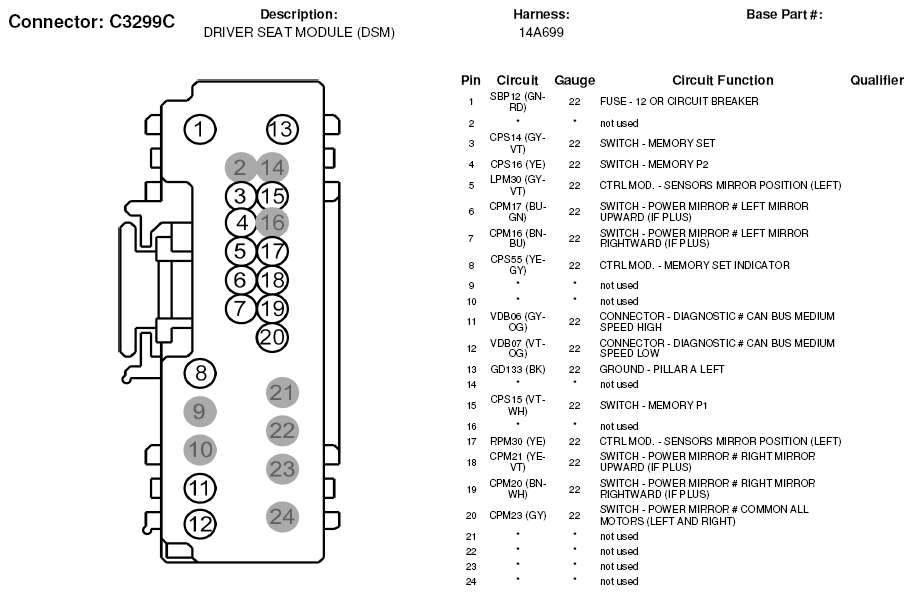

Fig 3: Driver Seat Module Connector End View (C3299C)

Courtesy of FORD MOTOR CO.

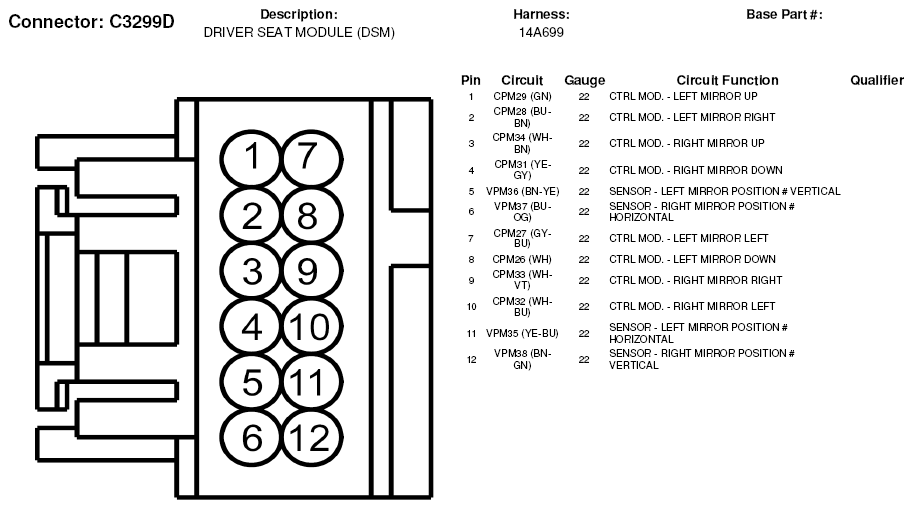

Fig 4: Driver Seat Module Connector End View (C3299D)

Courtesy of FORD MOTOR CO.
