Front Impact Sensor Connector
Front Impact Sensor Connector

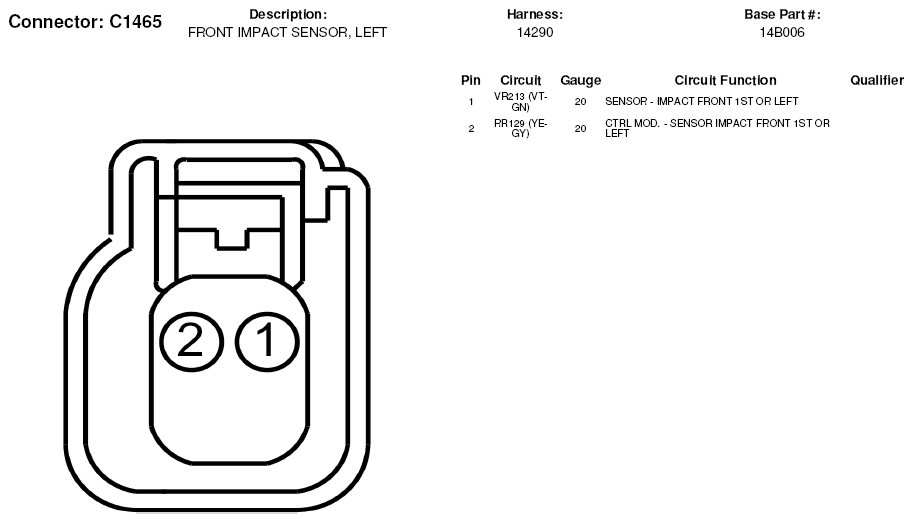

Fig 1: Front Impact Sensor Connector End View (C1465)
Courtesy of FORD MOTOR CO.

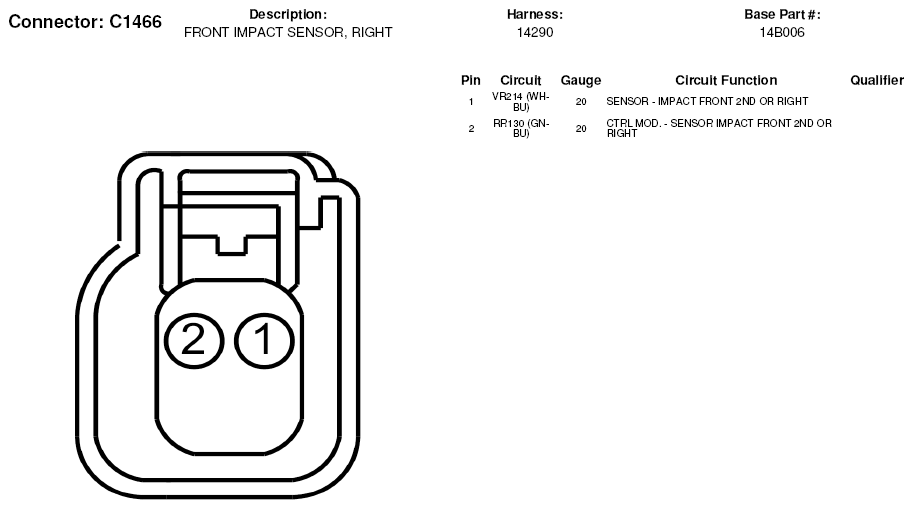

Fig 2: Front Impact Sensor Connector End View (C1466)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
