Fuel Level Sensor Connector
Fuel Level Sensor Connector

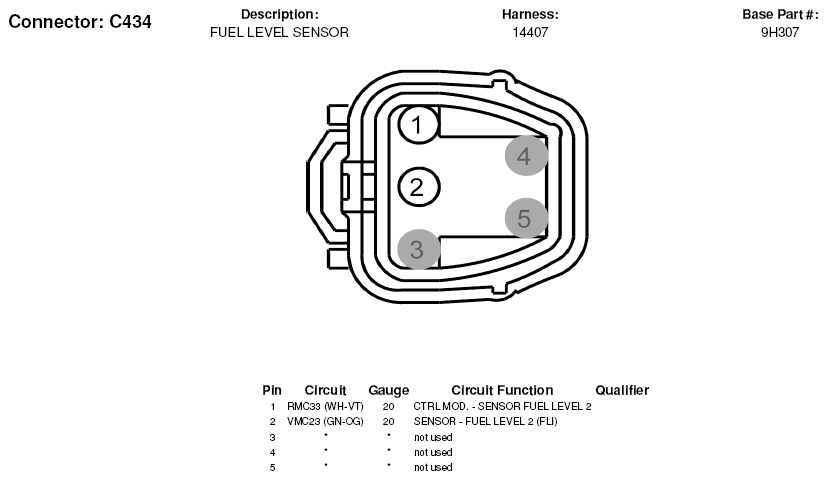

Fig 1: Fuel Level Sensor Connector End View (C434)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
