Fuel Pump Module Connector
Fuel Pump Module Connector

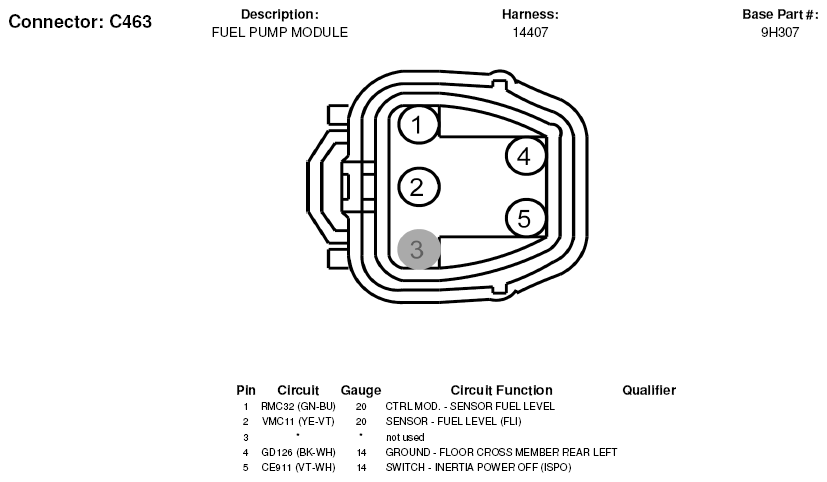

Fig 1: Fuel Pump Module Connector End View (C463)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
