HVAC Module EMTC Connector
HVAC Module EMTC Connector

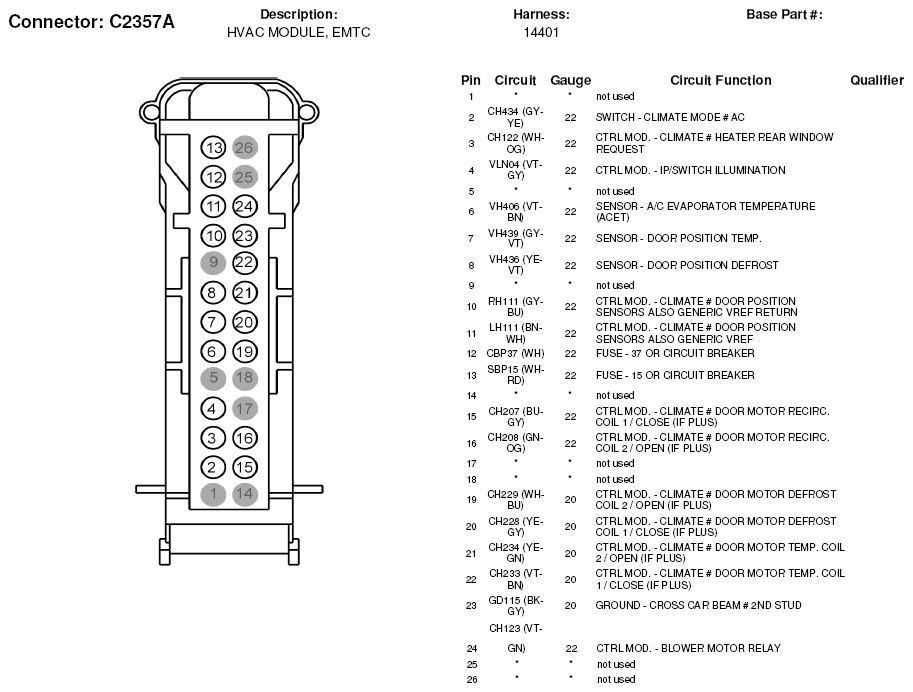

Fig 1: HVAC Module EMTC Connector End View (C2357A)
Courtesy of FORD MOTOR CO.

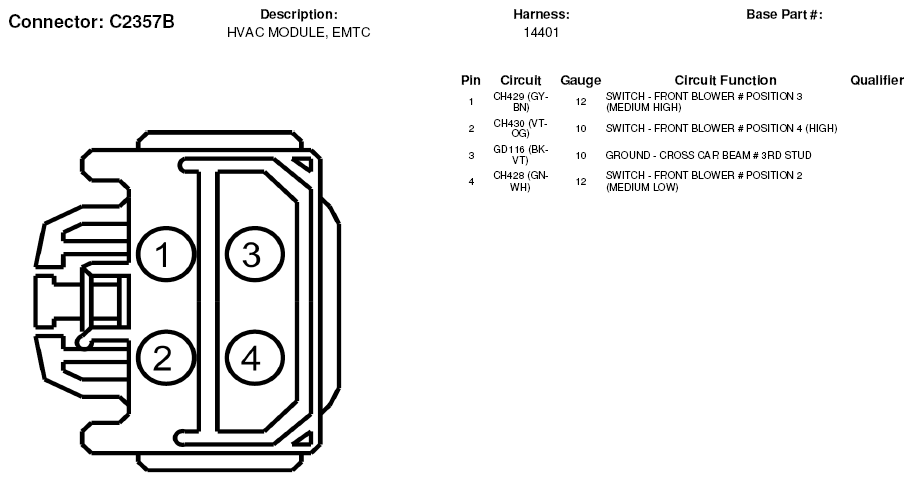

Fig 2: HVAC Module EMTC Connector End View (C2357B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
