Heated Seat Module Connectors

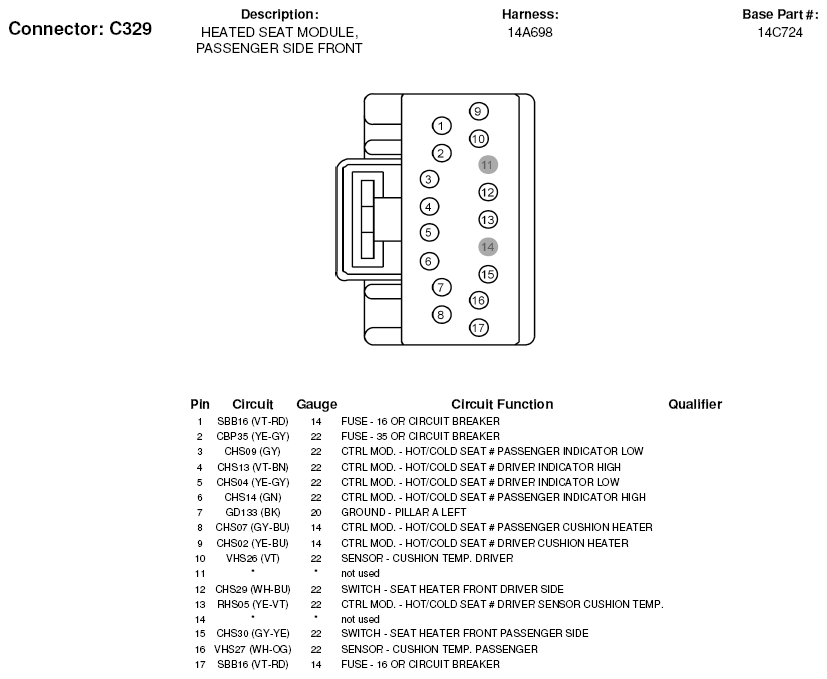

Fig 1: Heated Seat Module Connector End View (C329)
G05182607Courtesy of FORD MOTOR CO.

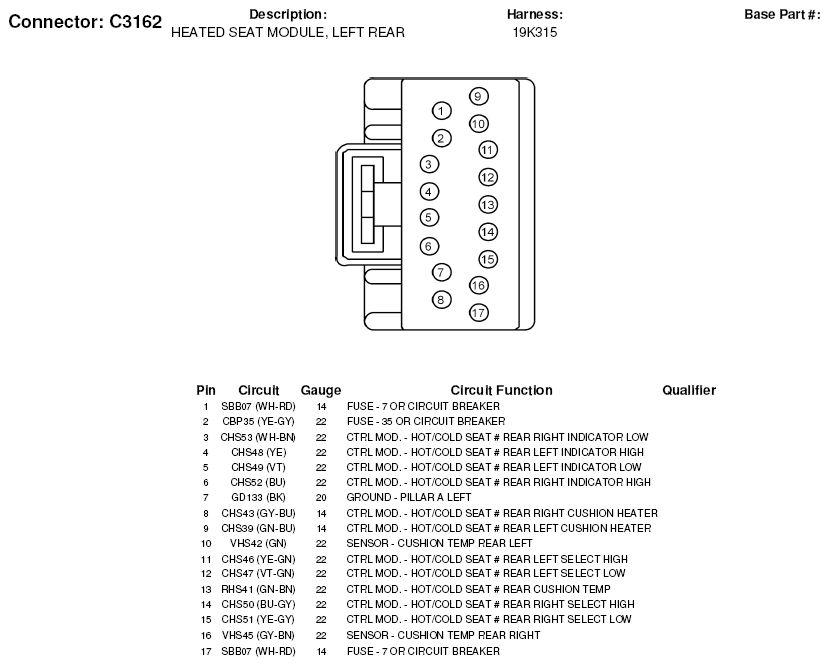

Fig 2: Heated Seat Module Connector End View (C3162)
G05182767Courtesy of FORD MOTOR CO.
