Light Sensor Connector

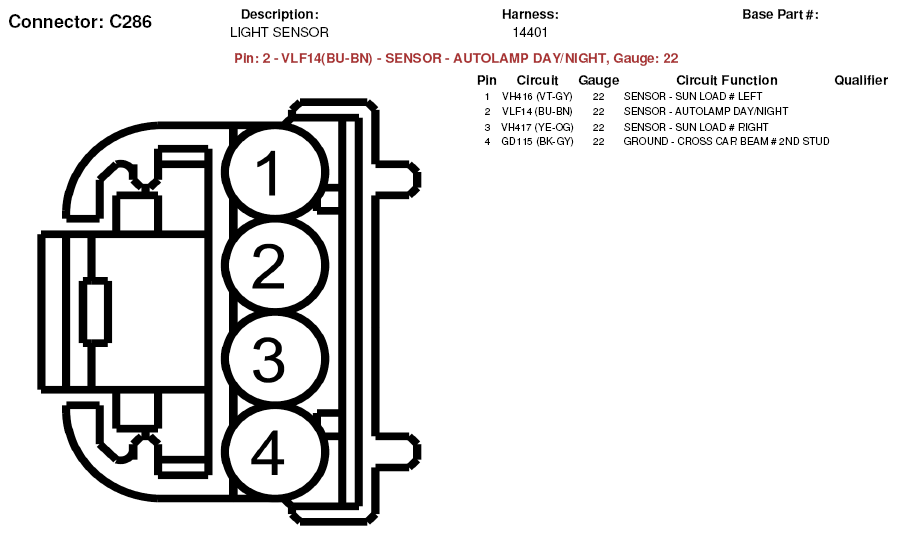

Fig 1: Light Sensor Connector End View (C286)
G05182592Courtesy of FORD MOTOR CO.

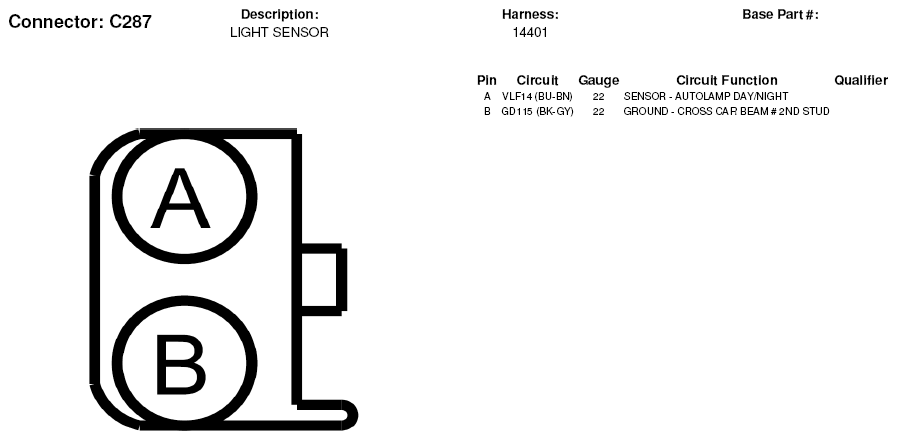

Fig 2: Light Sensor Connector End View (C287)
G05182593Courtesy of FORD MOTOR CO.
