Master Window Adjust Switch Connector

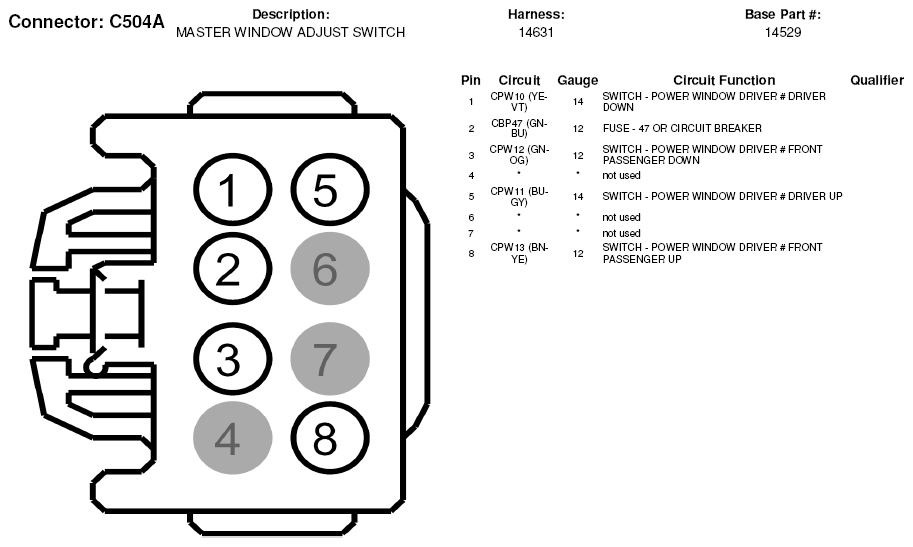

Fig 1: Master Window Adjust Switch Connector End View (C504A)

Courtesy of FORD MOTOR CO.

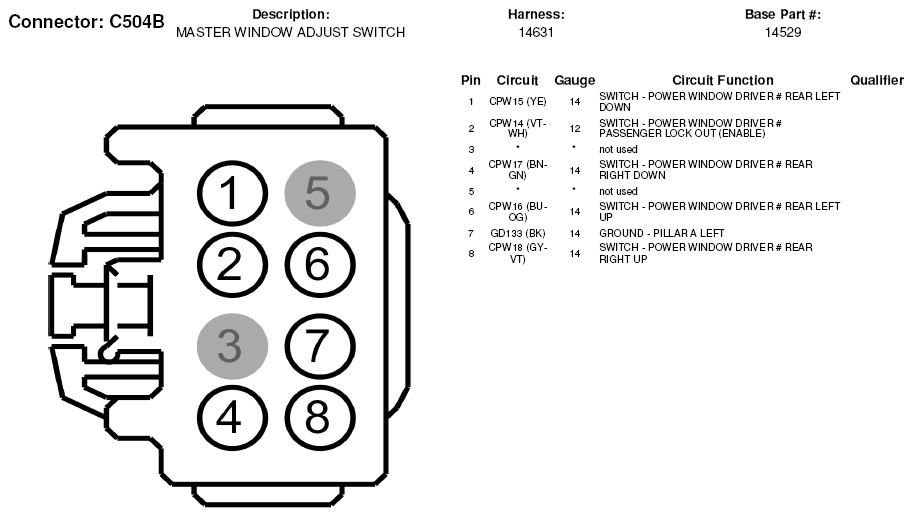

Fig 2: Master Window Adjust Switch Connector End View (C504B)

Courtesy of FORD MOTOR CO.

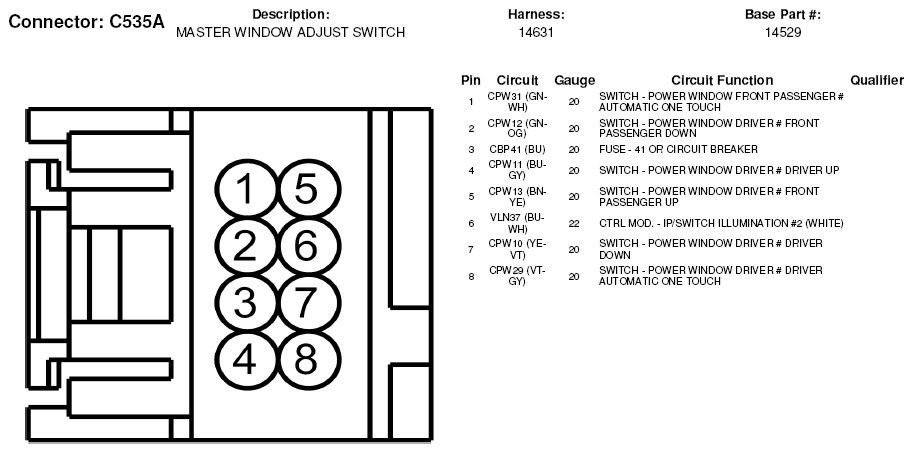

Fig 3: Master Window Adjust Switch Connector End View (C535A)

Courtesy of FORD MOTOR CO.

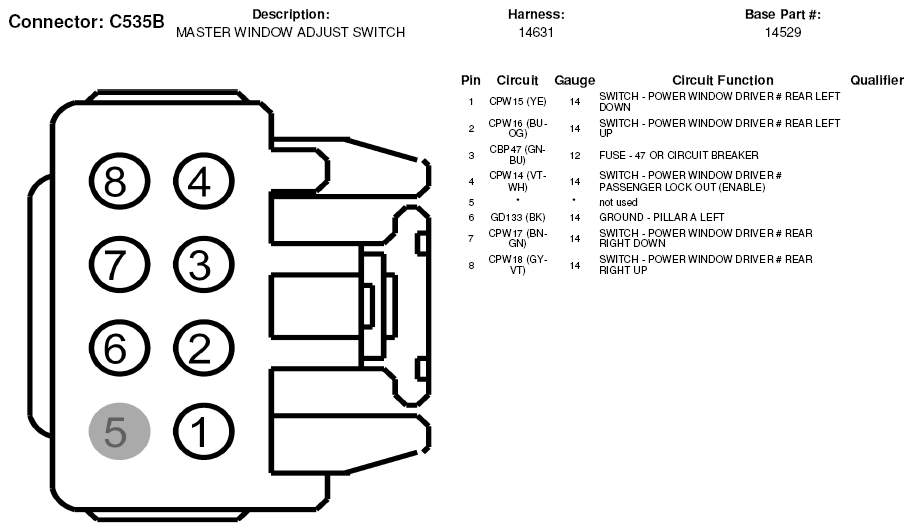

Fig 4: Master Window Adjust Switch Connector End View (C535B)

Courtesy of FORD MOTOR CO.
