Occupant Classification Sensor 2 Connector
Occupant Classification Sensor 2 Connector

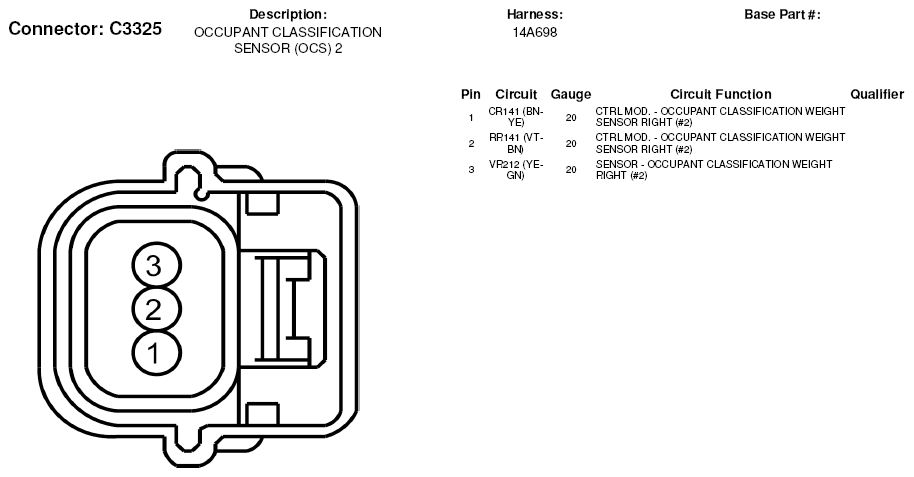

Fig 1: Occupant Classification Sensor 2 Connector End View (C3325)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
