Occupant Classification Sensor 4 Connector
Occupant Classification Sensor 4 Connector

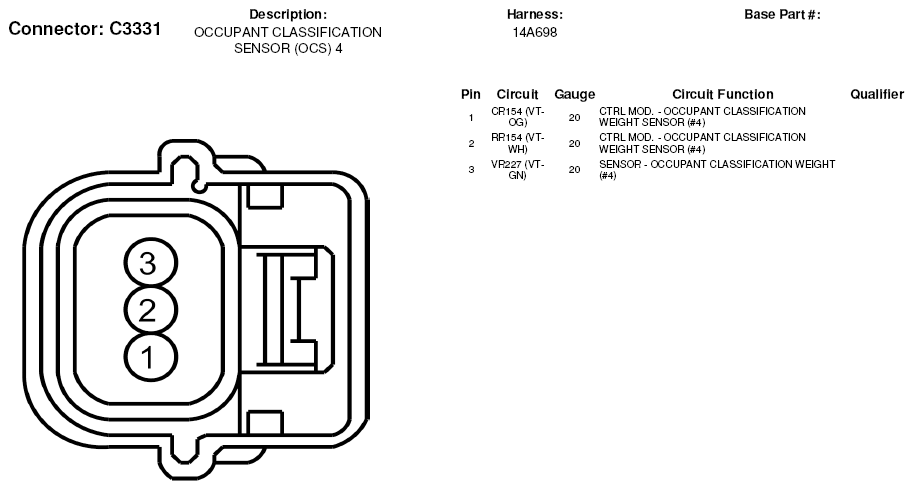

Fig 1: Occupant Classification Sensor 4 Connector End View (C3331)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
