Power Point Console 1 Connector

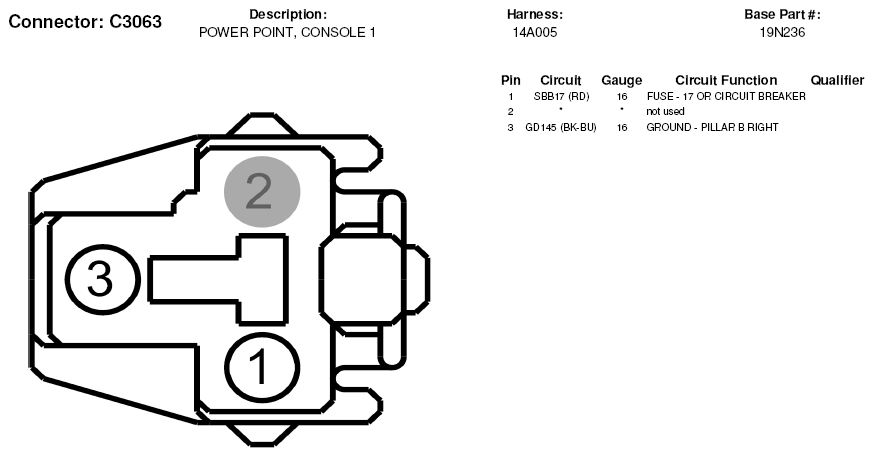

Fig 1: Power Point Console 1 Connector End View (C3063)
G05182760Courtesy of FORD MOTOR CO.
