Power Window Switch Connector

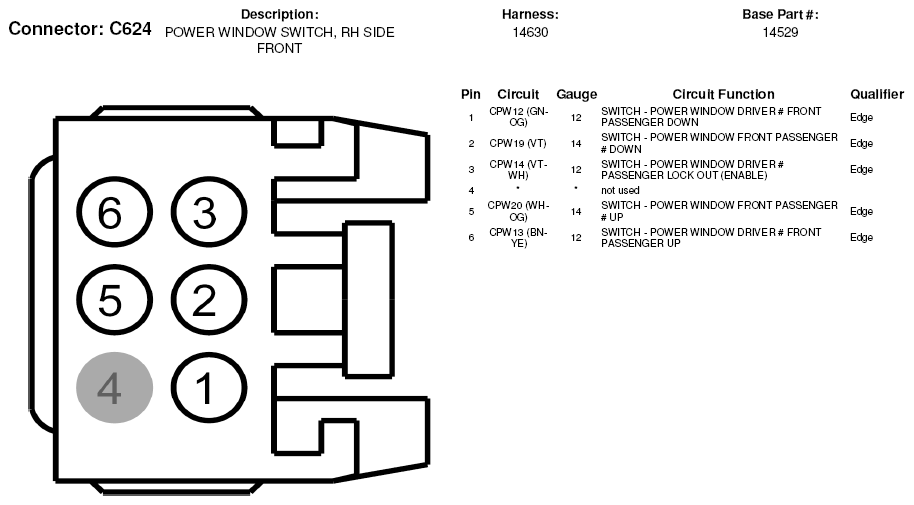

Fig 1: Power Window Switch Connector End View (C624)
G05182663Courtesy of FORD MOTOR CO.

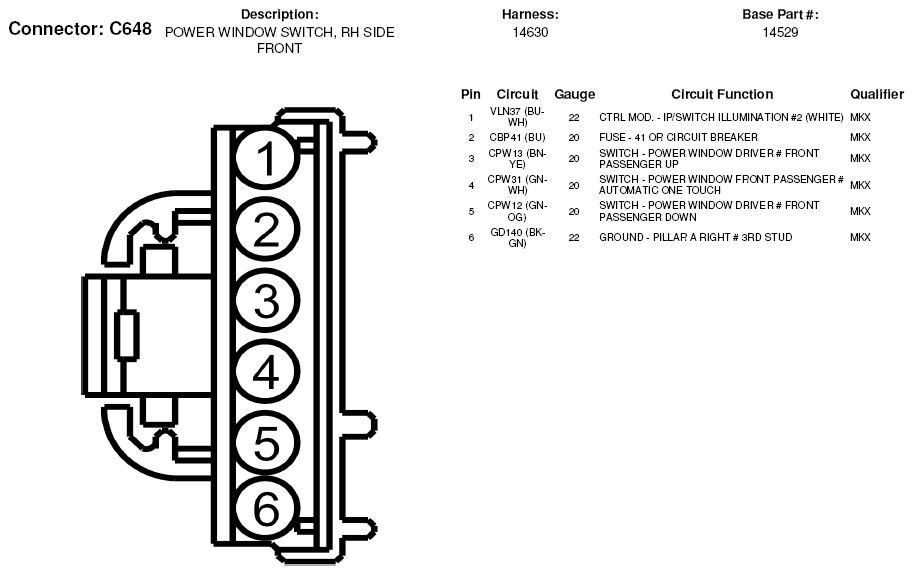

Fig 2: Power Window Switch Connector End View (C648)
G05182666Courtesy of FORD MOTOR CO.
