Side Air Curtain Module Connector

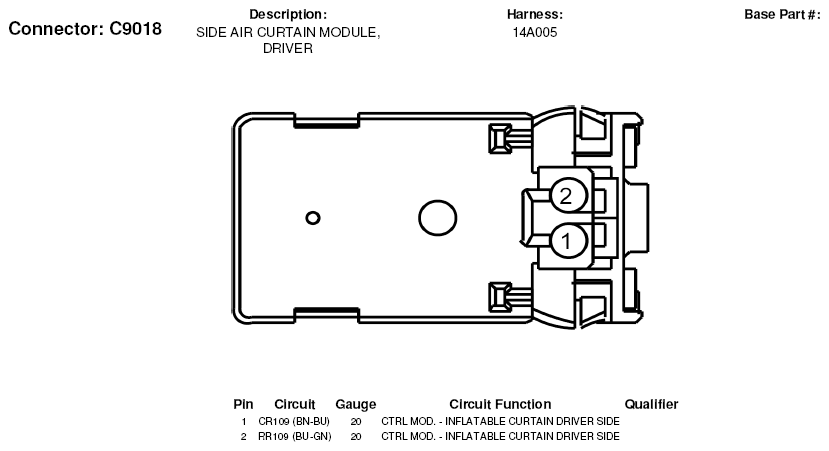

Fig 1: Side Air Curtain Module Connector End View (C9018)
G05182836Courtesy of FORD MOTOR CO.

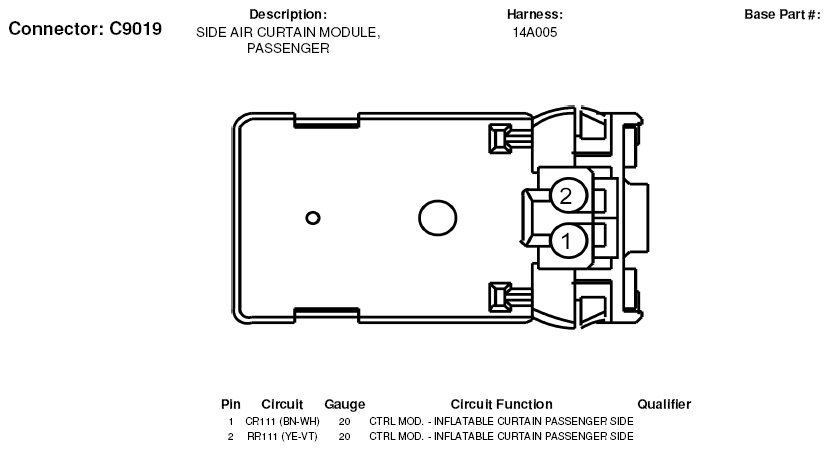

Fig 2: Side Air Curtain Module Connector End View (C9019)
G05182837Courtesy of FORD MOTOR CO.
