Oil Cooler: Notes

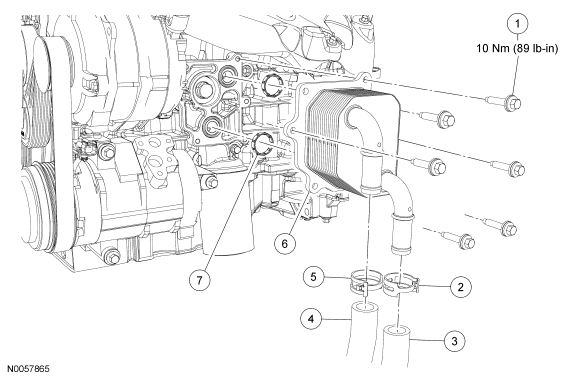

Fig 1: Exploded View Of Oil Cooler With Torque Specification

GF0031372

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503277	Oil cooler bolt (6 required)
2	15161	Coolant hose clamp
3	8N021	Coolant hose
4	8B274	Coolant hose
5	15161	Coolant hose clamp
6	6A642	Oil cooler
7	6A636	Oil cooler gasket (2 required)
