Liftgate Ajar Switch Connector
Liftgate Ajar Switch Connector

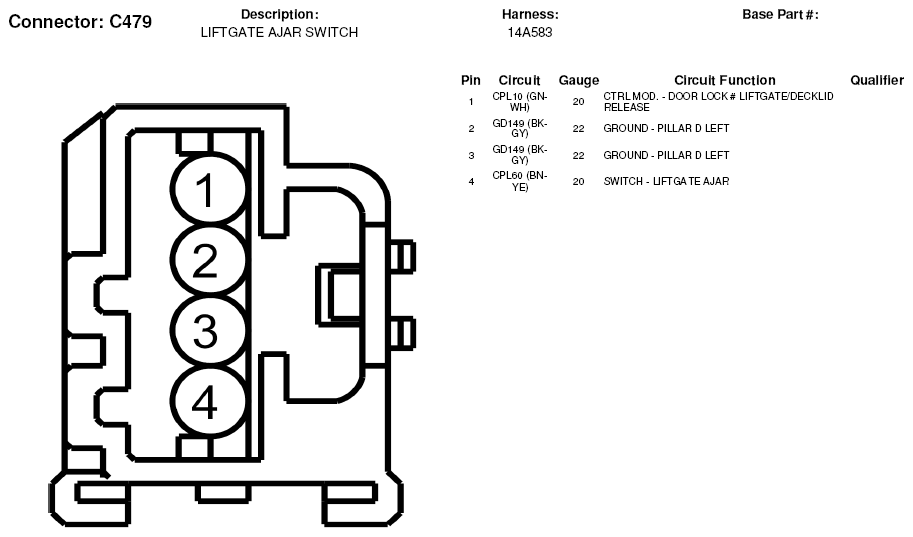

Fig 1: Liftgate Ajar Switch Connector End View (C479)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
