Safety Belt Retractor - Rear: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Torx Bit, Safety Belt Bolt	501-010 (T77L-2100-A)

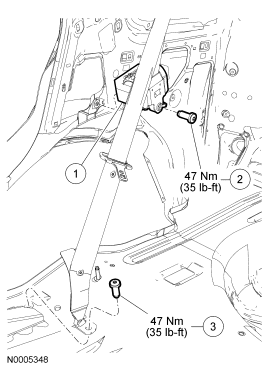

Fig 1: Exploded View Of Rear Safety Belt Retractor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611B68A	Rear safety belt retractor
2	N807750-S190	Rear safety belt retractor bolt
3	N807750-S190	Rear safety belt retractor anchor bolt
