Safety Belt Shoulder Height Adjuster: Notes

NOTE: Passenger side safety belt shoulder height adjuster shown, driver side similar.

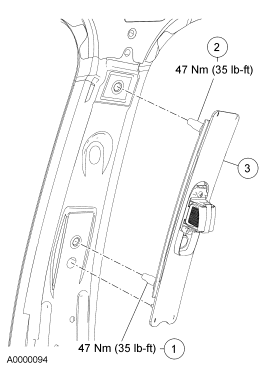

Fig 1: Exploded View Of Safety Belt Shoulder Height Adjuster With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Safety belt shoulder height adjuster lower bolt
2	-	Safety belt shoulder height adjuster upper bolt
3	602B82A	Safety belt shoulder height adjuster
