Selector Lever: Notes

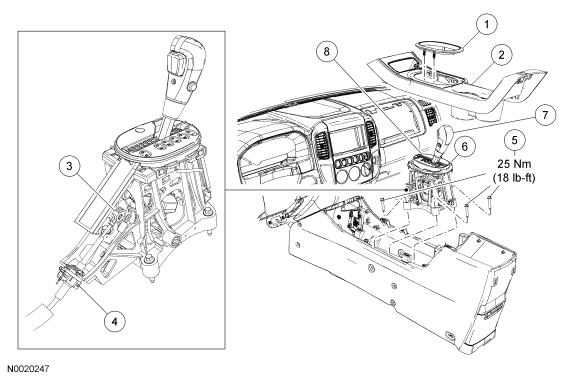

Fig 1: Exploded View Of Selector Lever Assembly With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	78061A16	Trim ring
2	78045G70	Top finish panel
3	-	Selector lever cable end (part of 7E395)
4	-	Selector lever cable retainer (part of 7E395)
5	W503298	Selector lever-to-floor bolt
6	7K004	Selector lever assembly
7	7L010	Knob
8	7E034	Bezel
