Engine Ignition Components - Exploded View

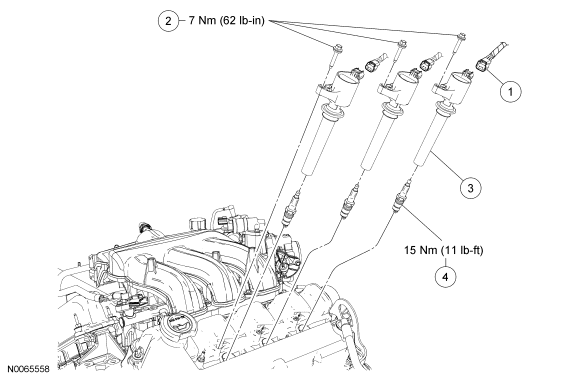

Fig 1: Exploded View Of Engine Ignition - RH With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	RH ignition coil-on-plug electrical connector (3 required)
2	W708833	RH ignition coil-to-valve cover bolts (3 required)
3	12029	RH ignition coil (3 required)
4	12405	RH spark plug (3 required)

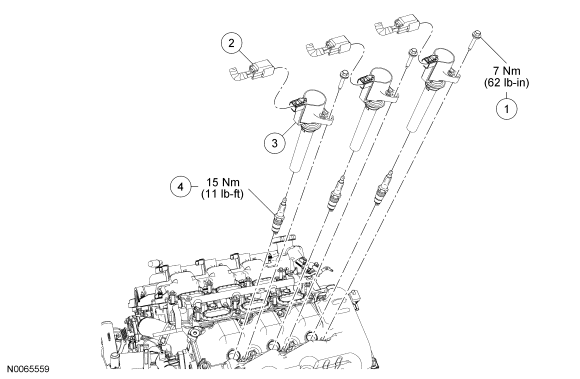

Fig 2: Exploded View Of Engine Ignition - LH With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W708833	LH ignition coil-to-valve cover bolt (3 required)
2	14A464	LH ignition coil-on-plug electrical connector (3 required)
3	12029	LH ignition coil (3 required)
4	12405	LH spark plug (3 required)

1. For additional information, refer to the following procedures.
