Safety Belt Retractor - Front: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Torx Bit, Safety Belt Bolt	501-010 (T77L-2100-A)

NOTE: Passenger side safety belt retractor shown, driver side similar.

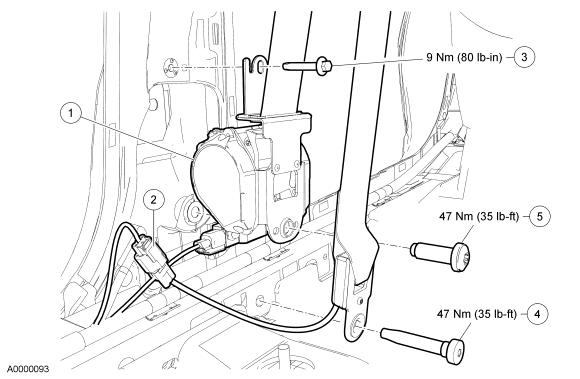

Fig 1: Exploded View Of Front Safety Belt Retractor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6611B08A	Front safety belt retractor
2	-	Front safety belt retractor belt tension sensor connector (passenger side only) (part of 6611B08A)
3	-	Front safety belt retractor upper bolt
4	603411700	Front safety belt retractor anchor bolt
5	N807750-S190	Front safety belt retractor bolt
