Hydraulic System: Notes
The hydraulic system uses transmission fluid to cool, lubricate and provide hydraulic pressure to the hydraulic circuits within the transaxle.

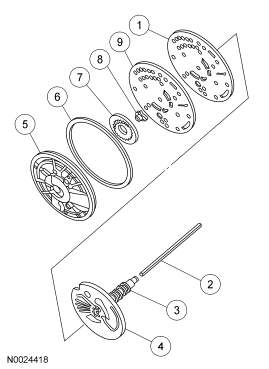

| Item | Part Number | Description |
|---|---|---|
| 1 | 7G331 | Gasket - pump body separator |
| 2 | 7B328 | Shaft - pump drive |
| 3 | 7H114 | Seal - pump support (6 required) |
| 4 | 7A103 | Support assembly - pump |
| 5 | 7F370 | Body - pump assembly |
| 6 | 7A248 | Seal - pump |
| 7 | - | Gears - pump (part of 7A103) |
| 8 | 7F402 | Insert - pump drive gear |
| 9 | 7A142 | Plate - pump body separator |
