Final Drive Carrier and Differential Assembly: Notes

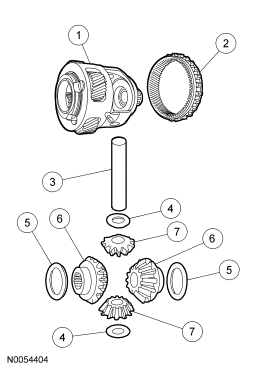

Fig 1: Exploded View Of Final Drive Carrier & Differential Assembly

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	4204	Differential case (with final drive carrier)
2	7F453	Ring gear - final drive
3	4211	Pinion shaft - differential
4	4230	Pinion thrust washers - differential
5	4228	Side gear thrust washers - differential
6	4236	Side gears - differential
7	4215	Pinion gears - differential
