OEM Connector End Views - (Hybrid)
›
Connector Views
›
Occupant Classification Sensor Module Connector
Occupant Classification Sensor Module Connector

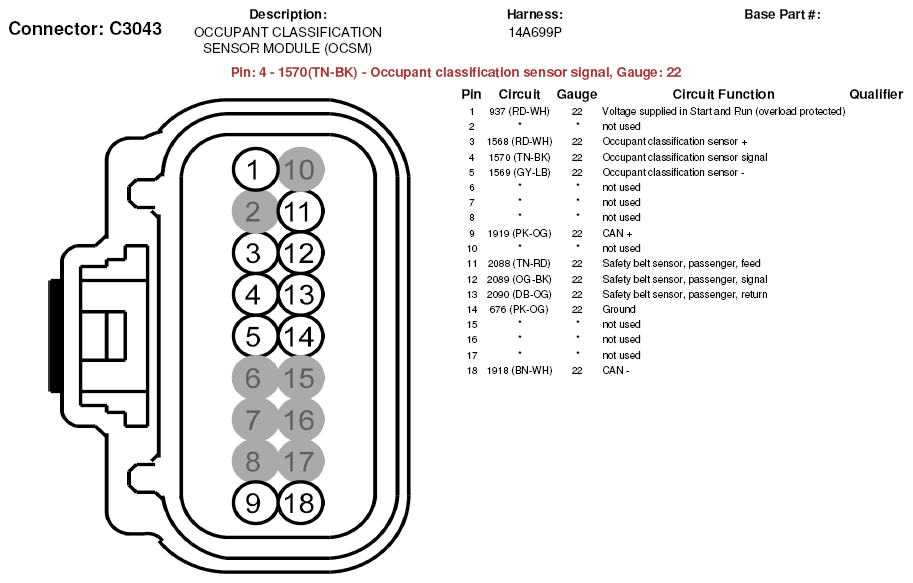

Fig 1: Occupant Classification Sensor Module Connector End View (C3043)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
