Left Rear Strobe Assembly Connector

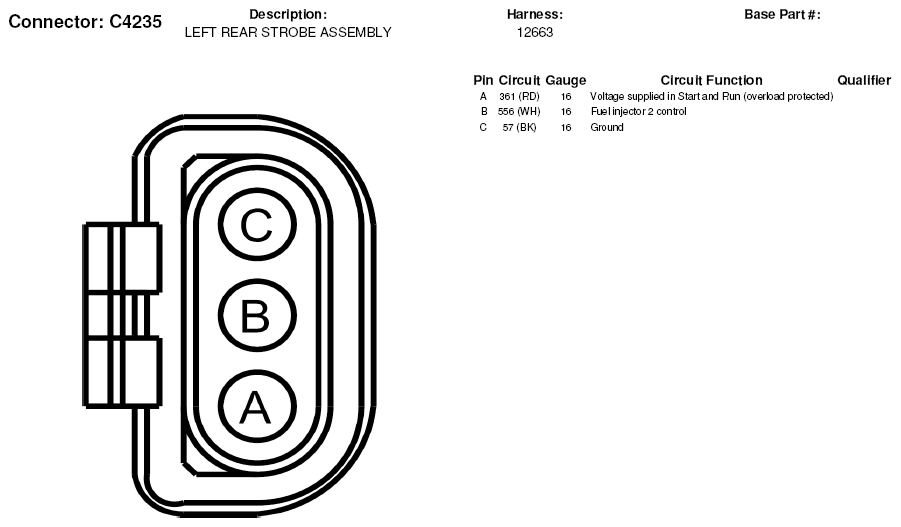

Fig 1: Left Rear Strobe Assembly Connector End View (C4235)
G05179365Courtesy of FORD MOTOR CO.
