Stability Control Sensor Cluster: Notes

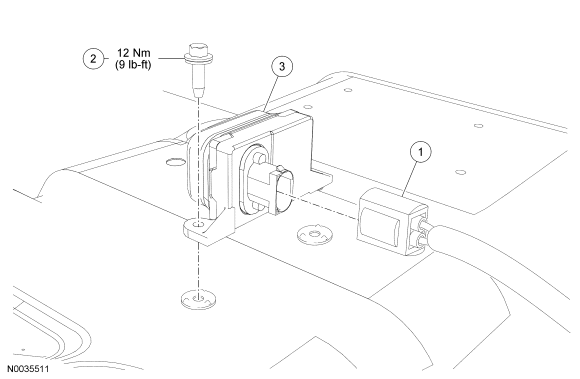

Fig 1: Exploded View Of Stability Control Sensor Cluster With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Stability control sensor cluster electrical connector (part of 14A005)
2	W505255	Stability control sensor cluster bolt (2 required)
3	3C187	Stability control sensor cluster
