Auxiliary Audio Module : Notes

NOTE: Expedition shown, Navigator similar.

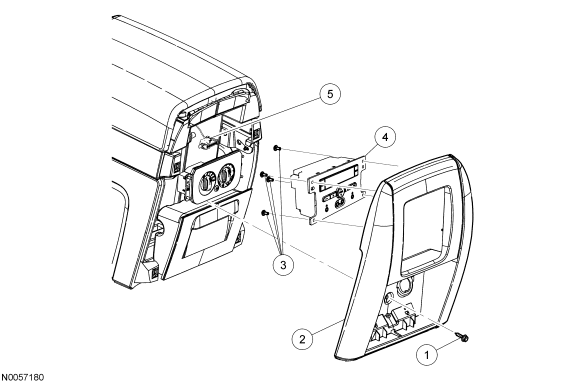

Fig 1: Exploded View Of Auxiliary Audio Module

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Center console rear trim panel bolt
2	78045A12	Center console rear trim panel
3	W506821-S	Auxiliary audio module screws (4 required)
4	19A164	Auxiliary audio module
5	-	Auxiliary audio module electrical connector (part of 14B079)
