Message Center Switch: Notes

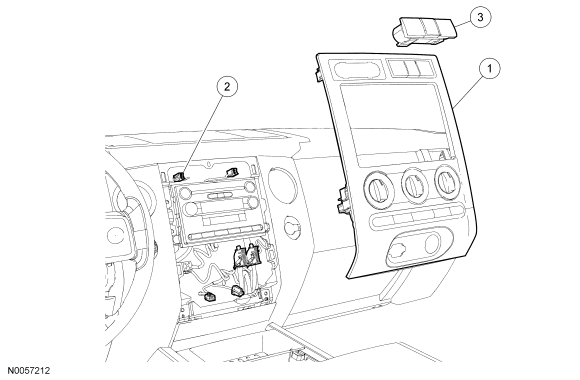

Fig 1: Exploded View Of Message Center Switch - Expedition

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	78044D70	Instrument panel center finish panel
2	-	Instrument panel center finish panel electrical connectors (part of 14401)
3	10D889	Message center switch

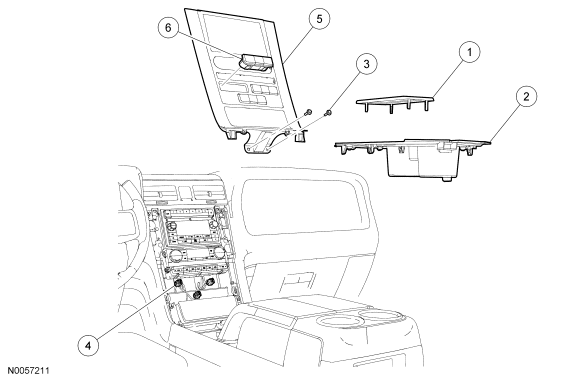

Fig 2: Exploded View Of Message Center Switch - Navigator

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7E391	Transmission range selector bezel
2	78044J76	Floor console finish panel
3	W707628	Instrument panel center finish panel screws (2 required)
4	-	Instrument panel center finish panel electrical connectors (part of 14401)
5	78044D70	Instrument panel center finish panel
6	10D889	Message center switch
