Electrochromatic Inside Mirror Unit Connector

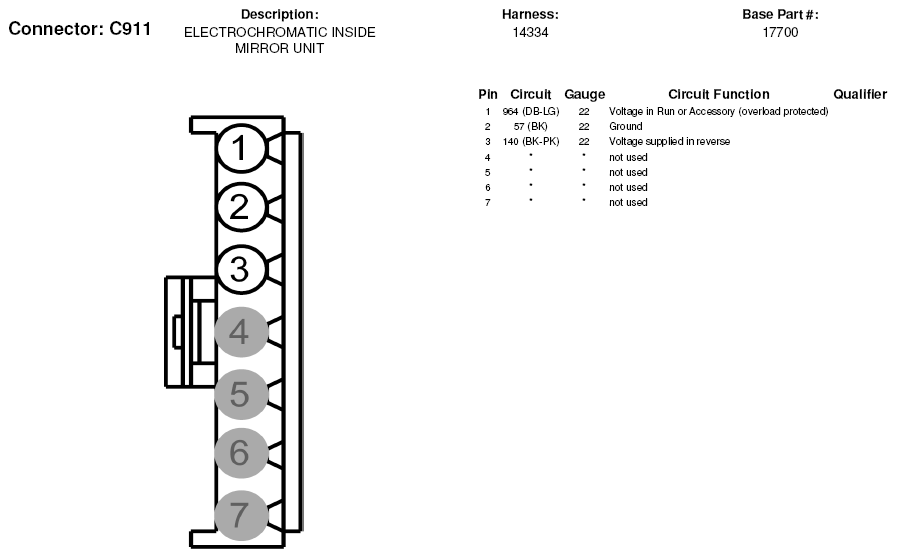

Fig 1: Electrochromatic Inside Mirror Unit Connector End View (C911)
G05179246Courtesy of FORD MOTOR CO.
