Power Window Motor Connectors

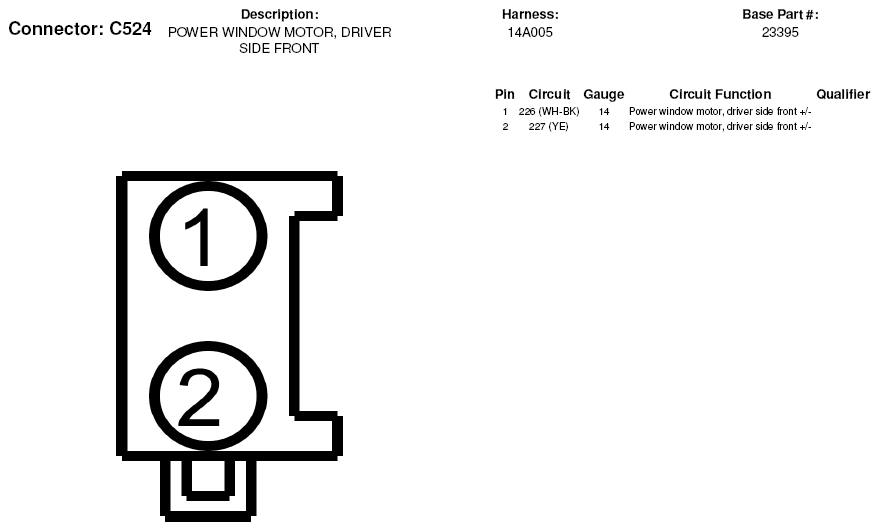

Fig 1: Power Window Motor Connector End View (C524)

Courtesy of FORD MOTOR CO.

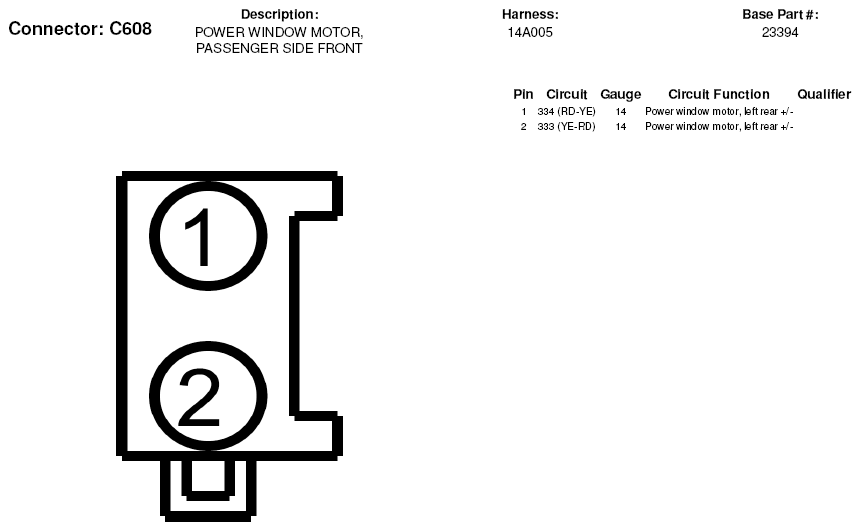

Fig 2: Power Window Motor Connector End View (C608)

Courtesy of FORD MOTOR CO.

Fig 3: Power Window Motor Connector End View (C703)

Courtesy of FORD MOTOR CO.

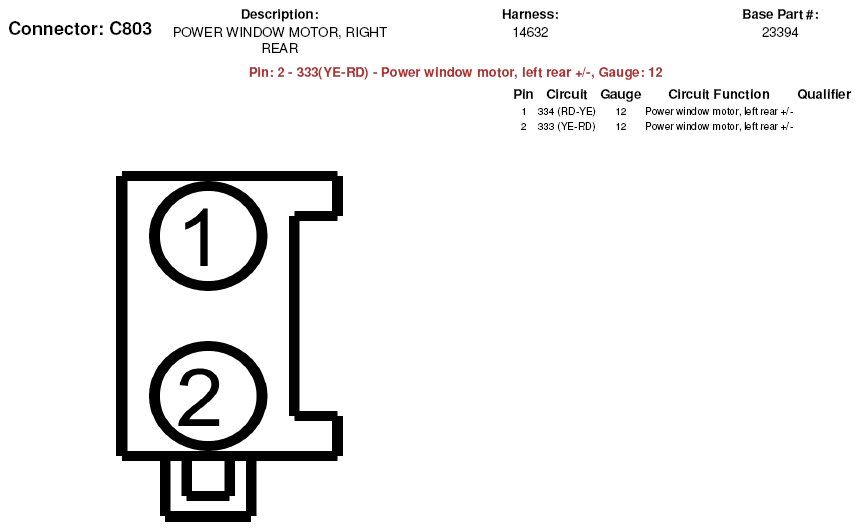

Fig 4: Power Window Motor Connector End View (C803)

Courtesy of FORD MOTOR CO.
