Side Impact Sensor Connectors

Fig 1: Side Impact Sensor Connector End View (C304)
G05179150Courtesy of FORD MOTOR CO.

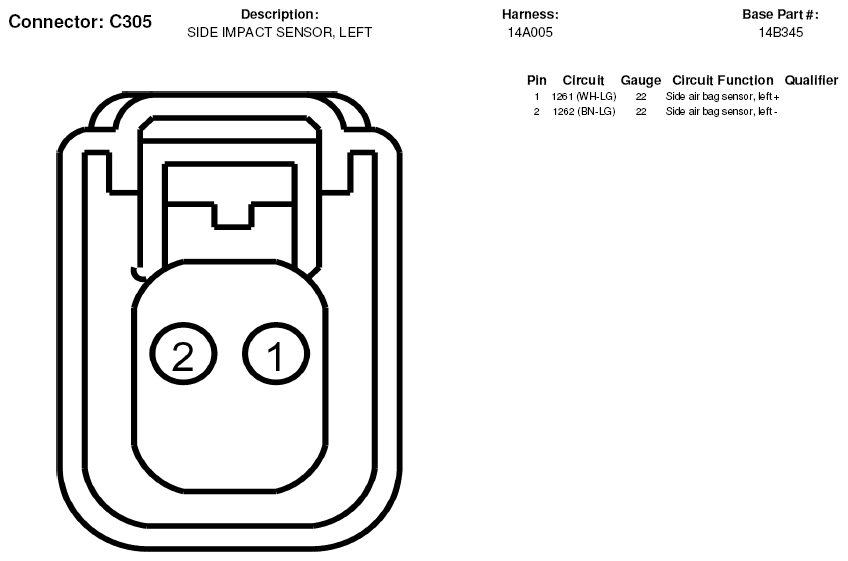

Fig 2: Side Impact Sensor Connector End View (C305)
G05179151Courtesy of FORD MOTOR CO.
