Seat - Exploded View, Third Row

NOTE: RH backrest shown, LH similar.

Fig 1: Exploded View Of Third Row Seat Backrest With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611A08	Head restraint
2	-	Head restraint-to-backrest frame bolts (2 required) (part of 605C10)
3	613A38	Backrest frame
4	66600	Backrest trim cover
5	66800	Backrest foam pad
6	62418	Backrest release handle (if equipped)
7	-	Hinge cover screws (2 required) (part of 605C10)
8	61348	Hinge cover
9	-	Hinge-to-backrest frame bolts (2 required) (part of 605C10)
10	61382	Hinge
11	61382	Manual latch
12	-	Latch-to-backrest frame bolts (manual and power) (2 required) (part of 605C10)
13	61349	Latch cover
14	61382	Power latch
15	-	Latch cover screws (2 required) (part of 605C10)

NOTE: RH cushion shown, LH similar.

NOTE: Power latch shown, manual latch similar.

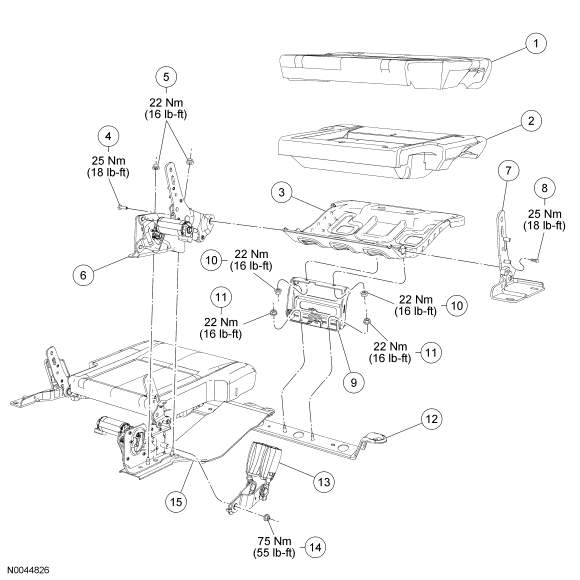

Fig 2: Exploded View Of Third Row Seat Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	63804	Cushion trim cover
2	63840	Cushion foam pad
3	63160	Cushion frame
4	-	Latch-to-cushion frame bolt (manual and power) (part of 605C10)
5	-	Latch-to-floor mounting bracket nuts (manual and power) (2 required) (part of 605C10)
6	61382	Power latch
7	61382	Hinge
8	-	Hinge-to-cushion frame bolt (part of 605C10)
9	613E52	Cushion pivot link assembly
10	-	Cushion pivot link assembly-to-cushion frame nuts (2 required) (part of 605C10)
11	-	Cushion pivot link assembly-to-floor mounting bracket nuts (2 required) (part of 605C10)
12	606A51	Floor mounting bracket
13	611B60	Safety belt buckle assembly
14	-	Safety belt buckle assembly-to-latch nut (power and manual)
15	617C42	Cover
